VN10LP N-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET

VN10LP Description

N-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET ISSUE 1 * FEB 94 .

VN10LP Features

* 60 Volt VDS

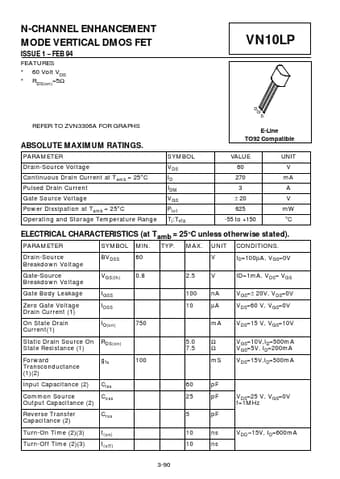

* RDS(on)=5Ω VN10LP D G S REFER TO ZVN3306A FOR GRAPHS E-Line TO92 Compatible SYMBOL V DS ID I DM V GS P tot T j :T stg VALUE 60 270 3 ± 20 625 -55 to +150 UNIT V mA A V mW °C ABSOLUTE MAXIMUM RATINGS. PARAMETER Drain-Source Voltage Continuous Drain Current at T amb = 25°

📥 Download Datasheet

Preview of VN10LP PDF

Datasheet Details

Part number
VN10LP
Manufacturer
Zetex Semiconductors
File Size
22.42 KB
Datasheet
VN10LP_ZetexSemiconductors.pdf
Description
N-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET
