FXT757 PNP SILICON PLANAR MEDIUM POWER HIGH VOLTAGE TRANSISTOR

FXT757 Description

PNP SILICON PLANAR MEDIUM POWER HIGH VOLTAGE TRANSISTOR ISSUE 1 – FEB 94 .

FXT757 Features

* 300 Volt VCEO
* 0.5 Amp continuous current
* Ptot= 1 Watt www. DataSheet4U. com FXT757 B C E REFER TO ZTX757 FOR GRAPHS ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Power Di

📥 Download Datasheet

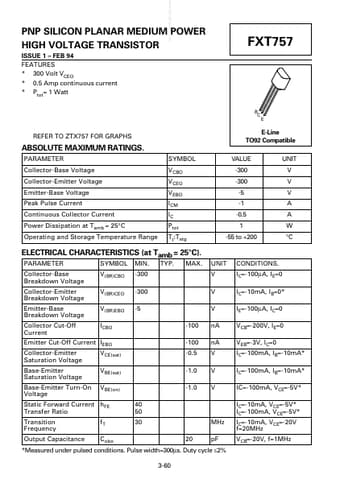

Preview of FXT757 PDF

Datasheet Details

Part number
FXT757
Manufacturer
Zetex Semiconductors
File Size
55.59 KB
Datasheet
FXT757_ZetexSemiconductors.pdf
Description
PNP SILICON PLANAR MEDIUM POWER HIGH VOLTAGE TRANSISTOR
