FXT450 - NPN SILICON PLANAR MEDIUM POWER TRANSISTOR

Zetex (Diodes Incorporated)

Key Features

45 Volt VCEO.
1 Amp continuous current.
Ptot=1 Watt FXT450 B C E REFER TO ZTX450 FOR GRAPHS.

FXT450 npn silicon planar medium power transistor by Zetex (Diodes Incorporated) - Datasheet Preview

Datasheet Details

Part number	FXT450
Manufacturer	Zetex (Diodes Incorporated)
File Size	55.05 KB
Description	NPN SILICON PLANAR MEDIUM POWER TRANSISTOR
Datasheet	FXT450 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
FXT601B	NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTOR	Freescale Semiconductor
FXT603	NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTOR	ETC
FXT605	NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTOR	ETC
FXT651	NPN SILICON PLANAR MEDIUM POWER TRANSISTOR	ETC
FXT749	PNP SILICON PLANAR MEDIUM POWER TRANSISTOR	ETC

Other Datasheets by Zetex (Diodes Incorporated)

Part Number	Description
FXT451	NPN SILICON PLANAR MEDIUM POWER TRANSISTOR
FXT453	NPN SILICON PLANAR MEDIUM POWER TRANSISTOR
FXT455	NPN SILICON PLANAR MEDIUM POWER TRANSISTOR
FXT458	NPN SILICON PLANAR MEDIUM POWER TRANSISTOR
FXT449	NPN SILICON PLANAR MEDIUM POWER TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

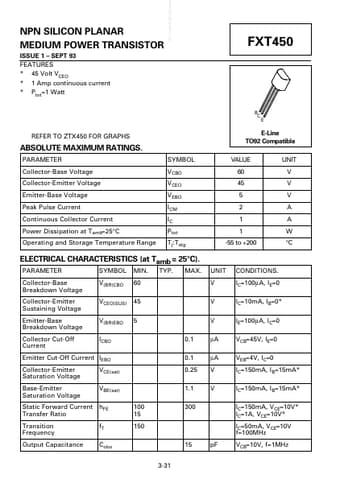

www.DataSheet4U.com NPN SILICON PLANAR MEDIUM POWER TRANSISTOR ISSUE 1 SEPT 93 FEATURES * 45 Volt VCEO * 1 Amp continuous current * Ptot=1 Watt FXT450 B C E REFER TO ZTX450 FOR GRAPHS ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Power Dissipation at Tamb=25°C Operating and Storage Temperature Range SYMBOL VCBO VCEO VEBO I CM IC Ptot Tj:Tstg 60 45 5 2 1 1 E-Line TO92 Compatible VALUE UNIT V V V A A W °C -55 to +200 ELECTRICAL CHARACTERISTICS (at Tamb = 25°C).
