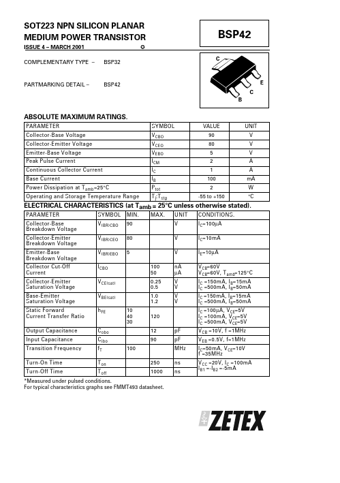

SOT223 NPN SILICON PLANAR MEDIUM POWER TRANSISTOR ISSUE 4 – MARCH 2001 COMPLEMENTARY TYPE – BSP32 ✪ BSP42 C PARTMARKING DETAIL – BSP42 C B E ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Base Current Power Dissipation at T amb =25°C Operating and Storage Temperature Range SYMBOL V CBO V CEO V EBO I CM IC IB P tot T j:T stg VALUE 90 80 5 2 1 100 2 -55 to +150 UNIT V V V A A mA W °C ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).
