ZL60210, ZL60209 - (ZL60209 / ZL60210) Video IP Surveillance 10/100 Mbps Control Room UTP-to-Fiber

Zarlink Semiconductor

📥 Download Datasheet

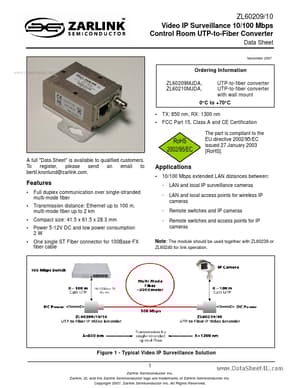

ZL60210 Datasheet Preview — This datasheet PDF includes multiple part numbers: ZL60210, ZL60209. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ZL60210, ZL60209
Manufacturer	Zarlink Semiconductor
File Size	147.68 KB
Description	(ZL60209 / ZL60210) Video IP Surveillance 10/100 Mbps Control Room UTP-to-Fiber
Datasheet	ZL60209_ZarlinkSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: ZL60210, ZL60209. Please refer to the document for exact specifications by model.

ZL60210 Product details

Description

Data Sheet The ZL60209 and ZL60210 video IP surveillance camera cable extender module is a fully integrated device designed for direct connection between two types of media: 10/100Base-TX STP/UTP (Fast Ethernet on shielded/unshielded twisted pair copper cables) and 100Base-FX (Fast Ethernet on multi-mode fiber) with single fiber, to extend the network reach up to 2 km.www.datasheet4u.com Based on Zarlink’s world class family of high-performance LEDs, VCSELs and PINs the links have been optim

Features

Full duplex communication over single-stranded multi-mode fiber Transmission distance: Ethernet up to 100 m, multi-mode fiber up to 2 km Compact size: 41.5 x 61.5 x 28.3 mm Power 5-12V DC and low power consumption 2W One single ST Fiber connector for 100Base-FX fiber cable Note: The module should be used together with ZL60239 or ZL60240 for link operation. Figure 1 - Typical Video IP Surveillance Solution 1 Zarlink Semiconductor Inc. Zarlink, Z.
