ZL50016 Datasheet - Zarlink Semiconductor

ZL50016 Enhanced 1 K Digital Switch

The ZL50016 is a maximum 1024 x 1024 channel non-blocking digital Time Division Multiplex (TDM) switch. It has sixteen input streams (STi0 - 15) and sixteen output streams (STio0 - 15). The device can switch 64 kbps and Nx64 kbps TDM channels from any input stream to any output stream. Each of the i.

ZL50016 Features

* 1024 channel x 1024 channel non-blocking digital Time Division Multiplex (TDM) switch at 4.096 Mbps, 8.192 Mbps and 16.384 Mbps or using a combination of ports running at 2.048 Mbps, 4.096 Mbps, 8.192 Mbps and 16.384 Mbps 16 serial TDM input, 16 serial TDM output streams Output streams can

ZL50016_ZarlinkSemiconductor.pdf

Preview of ZL50016 PDF

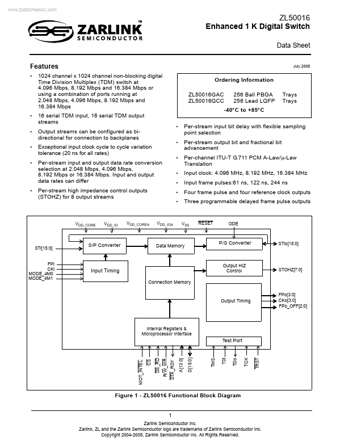

ZL50016 Datasheet Preview Page 2 ZL50016 Datasheet Preview Page 3

Datasheet Details

Part number:

ZL50016

Manufacturer:

Zarlink Semiconductor

File Size:

699.51 KB

Description:

Enhanced 1 k digital switch.
