ZL40515 - (ZL40511 / ZL40515) Dual Output DVD and CD 4 Channel Laser Diode Drivers

This page provides the datasheet information for the ZL40515, a member of the ZL40511 (ZL40511 / ZL40515) Dual Output DVD and CD 4 Channel Laser Diode Drivers family.

Datasheet Summary

Description

The ZL40511/15 are high performance laser drivers capable of driving two separate cathode grounded laser diodes (e.g., 650 nm and 780 nm laser diodes).

The ZL40511/15 contain a 150 mA low-noise read channel (ChR), and three 500 mA write channels (Ch2, Ch3 and Ch4).

Features

Single 5 V supply (±10%) 150 mA low-noise read channel with 100 x current gain Three 500 mA write channels with 240 x gain Combined channel output 700 mA Dual output for DVD/CD laser Rise and fall times 1 ns typical Oscillator, 500 MHz, 100 mA with external resistor control of frequency and amplitude Power Up/Down control CMOS control signals > 2 kV ESD Low Rth QFN package Cont.

Zarlink Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	ZL40515
Manufacturer	Zarlink Semiconductor
File Size	1.25 MB
Description	(ZL40511 / ZL40515) Dual Output DVD and CD 4 Channel Laser Diode Drivers
Datasheet	ZL40515 Datasheet

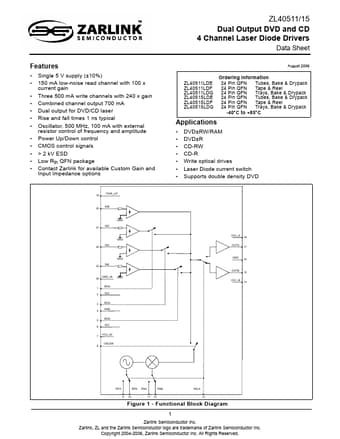

Additional preview pages of the ZL40515 datasheet.
