ZL10036 - Digital Satellite Tuner

Zarlink Semiconductor

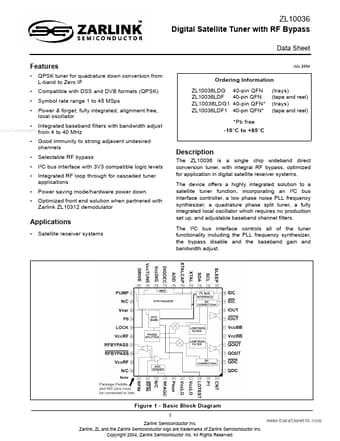

ZL10036 Datasheet Preview — Preview of ZL10036 PDF

Datasheet Details

Part number	ZL10036
Manufacturer	Zarlink Semiconductor
File Size	0.96 MB
Description	Digital Satellite Tuner
Datasheet	ZL10036_ZarlinkSemiconductor.pdf

ZL10036 Product details

Description

The ZL10036 is a single chip wideband direct conversion tuner, with integral RF bypass, optimized for application in digital satellite receiver systems.

Features

QPSK tuner for quadrature down conversion from L-band to Zero IF Compatible with DSS and DVB formats (QPSK) Symbol rate range 1 to 45 MSps Power & forget, fully integrated, alignment free, local oscillator Ordering Information ZL10036LDG ZL10036LDF ZL10036LDG1 ZL10036LDF1 40-pin QFN 40-pin QFN 40-pin QFN.
40-pin QFN.
Pb free -10 ° C to +85 ° C (trays) (tape and reel) (trays).
