MT8930C - Subscriber Network Interface Circuit

Zarlink Semiconductor

The MT8930C by Zarlink Semiconductor is a Subscriber Network Interface Circuit. Below is the official datasheet preview.

📥 Download Datasheet

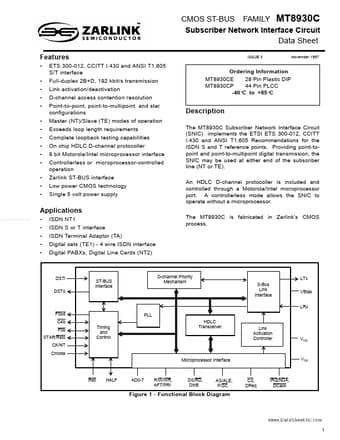

MT8930C Subscriber Network Interface Circuit by Zarlink Semiconductor - Datasheet Preview — Official preview page of the **MT8930C** Subscriber Network Interface Circuit datasheet (Zarlink Semiconductor).

Datasheet Details

Part number	MT8930C
Manufacturer	Zarlink Semiconductor
File Size	925.53 KB
Description	Subscriber Network Interface Circuit
Datasheet	MT8930C_ZarlinkSemiconductor.pdf
Additional preview pages of the MT8930C datasheet.

MT8930C Product details

Description

Applications www.DataSheet4U.com ISDN NT1 ISDN S or T interface ISDN Terminal Adaptor (TA) Digital sets (TE1) - 4 wire ISDN interface Digital PABXs, Digital Line Cards (NT2) DSTi DSTo ST-BUS Interface D-channel Priority Mechanism LTx S-Bus Link Interface VBias LRx F0od C4b F0b STAR/Rsto CK/NT Cmode Timing and Control PLL HDLC Transceiver Link Activation Controller VDD Microprocessor Interface VSS Rsti HALF AD0-7 R/W/WR, AFT/PRI D

Features

ETS 300-012, CCITT I.430 and ANSI T1.605 S/T interface Full-duplex 2B+D, 192 kbit/s transmission Link activation/deactivation D-channel access contention resolution Point-to-point, point-to-multipoint and star configurations Master (NT)/Slave (TE) modes of operation Exceeds loop length requirements Complete loopback testing capabilities On chip HDLC D-channe.
