MT1020A - Bluetooth Baseband Controller

Zarlink Semiconductor

📥 Download Datasheet

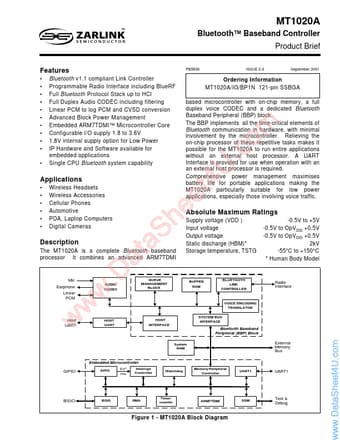

MT1020A Datasheet Preview — Preview of MT1020A PDF

Datasheet Details

Part number	MT1020A
Manufacturer	Zarlink Semiconductor
File Size	240.74 KB
Description	Bluetooth Baseband Controller
Datasheet	MT1020A_ZarlinkSemiconductor.pdf

MT1020A Product details

Description

The MT1020A is a complete Bluetooth baseband processor It combines an advanced ARM7TDMI Mic Earphone Linear PCM Host UART m o .c U 4 t e e h S a t a .D w w w Absolute Maximum Ratings Supply voltage (VDD ) Input voltage Output voltage Static discharge (HBM) Storage temperature, TSTG AUDIO CODEC QUEUE MANAGEMENT BLOCK BUFFER RAM BLUETOOTH LINK CONTROLLER VOICE ENCODING TRANSLATOR HOST UART HOST INTERFACE SYSTEM BUS INTERFACE -0.5V to +5V -0.5V to OpV DD +0.5V -0.5V to OpV DD +0.5V 2kV

Features

Bluetooth v1.1 compliant Link Controller Programmable Radio Interface including BlueRF Full Bluetooth Protocol Stack up to HCI Full Duplex Audio CODEC including filtering Linear PCM to log PCM and CVSD conversion Advanced Block Power Management Embedded ARM7TDMI™ Microcontroller Core Configurable l/O supply 1.8 to 3.6V 1.8V internal supply option for Low Power IP Hardware and Software av.
