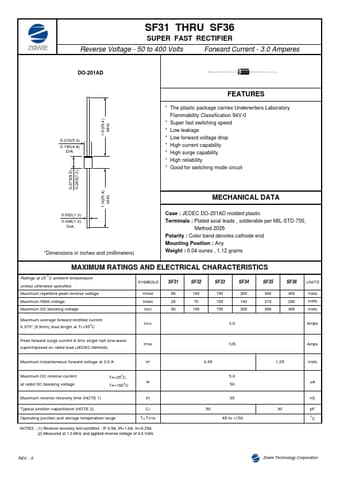

SF31 THRU SF36
SUPER FAST RECTIFIER
Reverse Voltage - 50 to 400 Volts
Forward Current - 3.0 Amperes
DO-201AD
0.210(5.3) 0.190(4.8)
DIA.
1.0(25.4) MIN.
FEATURES
* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
* Super fast switching speed * Low leakage * Low forward voltage drop * High current capability * High surge capability * High reliability * Good for switching mode circuit
0.375(9.5) 0.285(7.2) 1.0(25.4) MIN.
MECHANICAL DATA
0.052(1.3) 0.048(1.2)
DIA.
*Dimensions in inches and (millimeters)
Case : JEDEC DO-201AD molded plastic Terminals : Plated axial leads , solderable per MIL-STD-750,
Method 2026 Polarity : Color band denotes cathode end Mounting Position : Any Weight : 0.04 ounes , 1.
