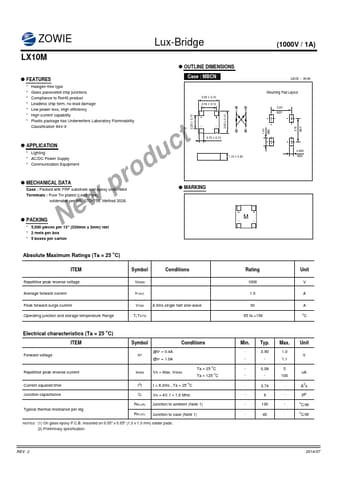

ZOWIE
Lux-Bridge
LX10M
OUTLINE DIMENSIONS
FEATURES
Case : MBCN
* Halogen-free type
* Glass passivated chip junctions
* Compliance to RoHS product
3.50 ± 0.10
* Leadless chip form, no lead damage
2.54 ± 0.10
* Low power loss, High efficiency
* High current capability
* Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
tAPPLICATION c* Lighting u* AC/DC Power Supply
* Communication Equipment
rodMECHANICAL DATA
Case : Packed with FRP substrate and epoxy underfilled
pTerminals : Pure Tin plated (Lead-Free),
solderable per MIL-STD-750, Method 2026.
NewPACKING
~~
0.70 ± 0.10
MARKING
* 5,000 pieces per 13" (330mm ± 2mm) reel
* 2 reels per box
* 5 boxes per carton
41 32
1.15 ± 0.20
M
~~
2.20 ± 0.15 3.80 ± 0.10 1.40 MIN. 3.70 REF.
