GF10B - Rectifier Diode

Download the GF10B datasheet PDF. This datasheet also covers the GF10A variant, as both devices belong to the same rectifier diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Lead free product , compliance to RoHs.
  • GPRC (glass passivated rectifier chip) inside.
  • Glass passivated cavity-free junction.
  • Ideal for surface mount automotive.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GF10A-ZOWIE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GF10B
Manufacturer ZOWIE
File Size 40.65 KB
Description Rectifier Diode
Datasheet download datasheet GF10B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GF100N30 IGBT STMicroelectronics
GF10HF60KD short-circuit rugged IGBT STMicroelectronics
GF10NB60SD low drop IGBT STMicroelectronics
GF10NC60 600V short-circuit rugged IGBT STMicroelectronics
GF10NC60HD very fast IGBT STMicroelectronics

Other Datasheets by ZOWIE

Part Number Description
GF10A Rectifier Diode
GF10D Rectifier Diode
GF10G Rectifier Diode
GF10J Rectifier Diode
GF10K Rectifier Diode

Full PDF Text Transcription

Click to expand full text

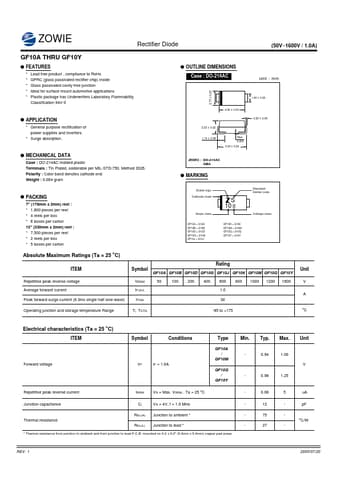

ZOWIE Rectifier Diode (50V~1600V / 1.0A) GF10A THRU GF10Y FEATURES * Lead free product , compliance to RoHs * GPRC (glass passivated rectifier chip) inside * Glass passivated cavity-free junction * Ideal for surface mount automotive applications * Plastic package has Underwriters Laboratory Flammability Classification 94V-0 OUTLINE DIMENSIONS Case : DO-214AC Unit : mm 2.70 ± 0.20 4.30 ± 0.30 1.40 ± 0.20 APPLICATION * General purpose rectification of power supplies and inverters. * Surge absorption. 2.22 ± 0.22 1.14 ± 0.38 Max. 0.203 5.04 ± 0.24 0.23 ± 0.08 MECHANICAL DATA Case : DO-214AC molded plastic Terminals : Tin Plated, solderable per MIL-STD-750, Method 2026. Polarity : Color band denotes cathode end Weight : 0.
