3SMBJ5938B-TPX01 - 3.0 Watt Surface Mount Silicon Zener Diodes

Download the 3SMBJ5938B-TPX01 datasheet PDF. This datasheet also covers the 3SMBJ5913B-TPX01 variant, as both devices belong to the same 3.0 watt surface mount silicon zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix designates RoHS Compliant. See ordering information) 3.3thru 56 Volt Voltage Range Low Inductance,Low Profile Mounting Glass Passivated Junction Available on Tape and Reel Mechanical Data Epoxy meets UL 94 V-0 flammability rating Moisure Sensitivity Level 1 Terminals solderable per MIL-STD-750, Method 2026 Polarity is indicated by cathode band. Packaging: Standard 12mm Tape (see EIA 481) Maximum temperature for soldering: 260 0C for 10 seconds.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (3SMBJ5913B-TPX01-ZBMCC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 3SMBJ5938B-TPX01
Manufacturer ZBMCC
File Size 501.87 KB
Description 3.0 Watt Surface Mount Silicon Zener Diodes
Datasheet download datasheet 3SMBJ5938B-TPX01 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
3SMBJ5938B Surface Mount Silicon Zener Diodes MCC
3SMBJ5930B Surface Mount Silicon Zener Diodes MCC
3SMBJ5931B Surface Mount Silicon Zener Diodes MCC
3SMBJ5932B Surface Mount Silicon Zener Diodes MCC
3SMBJ5933B Surface Mount Silicon Zener Diodes MCC

Other Datasheets by ZBMCC

Part Number Description
3SMBJ5930B-TPX01 3.0 Watt Surface Mount Silicon Zener Diodes
3SMBJ5931B-TPX01 3.0 Watt Surface Mount Silicon Zener Diodes
3SMBJ5932B-TPX01 3.0 Watt Surface Mount Silicon Zener Diodes
3SMBJ5933B-TPX01 3.0 Watt Surface Mount Silicon Zener Diodes
3SMBJ5934B-TPX01 3.0 Watt Surface Mount Silicon Zener Diodes

Full PDF Text Transcription

Click to expand full text

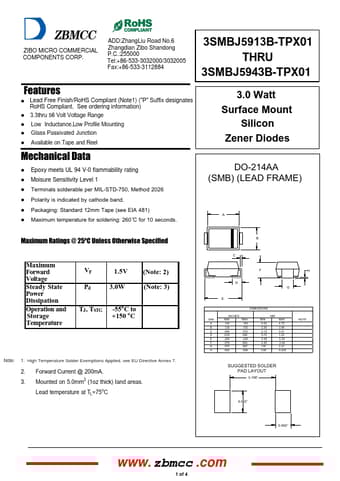

ZIBO MICRO COMMERCIAL COMPONENTS CORP. ADD:ZhangLiu Road No.6 Zhangdian Zibo Shandong P.C.:255000 Tel:+86-533-3032000/3032005 Fax:+86-533-3112884 3SMBJ5913B-TPX01 THRU 3SMBJ5943B-TPX01 Features Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix designates RoHS Compliant. See ordering information) 3.3thru 56 Volt Voltage Range Low Inductance,Low Profile Mounting Glass Passivated Junction Available on Tape and Reel Mechanical Data Epoxy meets UL 94 V-0 flammability rating Moisure Sensitivity Level 1 Terminals solderable per MIL-STD-750, Method 2026 Polarity is indicated by cathode band. Packaging: Standard 12mm Tape (see EIA 481) Maximum temperature for soldering: 260 0C for 10 seconds. 3.
