V910ME02 - OSCILLATOR

Download the V910ME02 datasheet PDF. This datasheet also covers the V910ME02_Z variant, as both devices belong to the same oscillator family and are provided as variant models within a single manufacturer datasheet.

Features

  • Frequency Range: 4245 - 4335.
  • Tuning Voltage: 0.5-8 Vdc.
  • MINI-14S-L - Style Package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (V910ME02_Z-Communications.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number V910ME02
Manufacturer Z-Communications
File Size 194.39 KB
Description OSCILLATOR
Datasheet download datasheet V910ME02 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
V910 Silicon Abrupt Tuning Varactors MA-COM
V910E Silicon Abrupt Tuning Varactors MA-COM
V912 Silicon Abrupt Tuning Varactors MA-COM
V912E Silicon Abrupt Tuning Varactors MA-COM
V915 Silicon Abrupt Tuning Varactors MA-COM

Other Datasheets by Z-Communications

Part Number Description
V910ME01 OSCILLATOR
V910ME01-LF VCOs
V910ME04 OSCILLATOR
V910ME05 Voltage-Controlled Oscillator
V910ME13 OSCILLATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

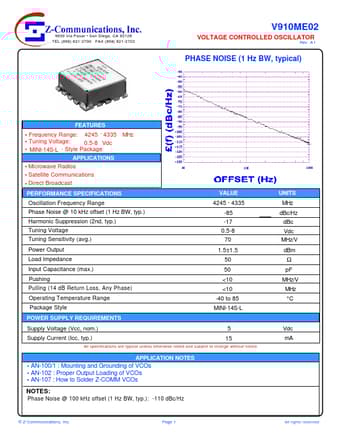

www.DataSheet4U.com V910ME02 9939 Via Pasar • San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 VOLTAGE CONTROLLED OSCILLATOR Rev A1 PHASE NOISE (1 Hz BW, typical) FEATURES • Frequency Range: 4245 - 4335 • Tuning Voltage: 0.5-8 Vdc • MINI-14S-L - Style Package APPLICATIONS • Microwave Radios • Satellite Communications • Direct Broadcast PERFORMANCE SPECIFICATIONS Oscillation Frequency Range MHz VALUE 4245 - 4335 -85 -17 0.5-8 70 1.5±1.5 50 50 <10 <10 -40 to 85 MINI-14S-L UNITS MHz dBc/Hz dBc Vdc MHz/V dBm Phase Noise @ 10 kHz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Tuning Voltage Tuning Sensitivity (avg.) Power Output Load Impedance Input Capacitance (max.
