V900ME04, V900ME04_Z OSCILLATOR

Z-Communications

Description

www.DataSheet4U.com 9939 Via Pasar * San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 V900ME04 VOLTAGE CONTROLLED OSCILLATOR Rev A1 .

📥 Download Datasheet

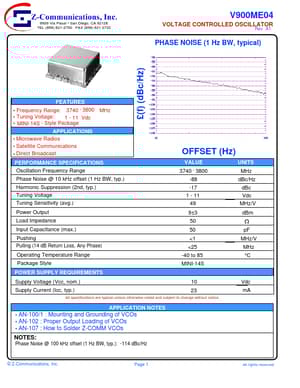

V900ME04 Datasheet Preview — This datasheet PDF includes multiple part numbers: V900ME04, V900ME04_Z. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: V900ME04, V900ME04_Z
Manufacturer: Z-Communications
File Size: 95.63 KB
Datasheet: V900ME04_Z-Communications.pdf
Description: OSCILLATOR
Note: This datasheet PDF includes multiple part numbers: V900ME04, V900ME04_Z.
Please refer to the document for exact specifications by model.

Features

* Frequency Range: 3740 - 3800 MHz
* Tuning Voltage: 1 - 11 Vdc

Applications

* Microwave Radios
* Satellite Communications
* Direct Broadcast PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input Capa
