V800ME08, V800ME08_Z - OSCILLATOR

V800ME08 Description

www.DataSheet4U.com V800ME08 9939 Via Pasar * San Diego, CA 92126 TEL (619) 621-2700 FAX (619) 621-2722 VOLTAGE CONTROLLED OSCILLATOR Rev A.

V800ME08 Features

* Frequency Range: 2400 - 2485 MHz
* Tuning Voltage: 0.5-4.5 Vdc

V800ME08 Applications

* WLAN
* Broadcast Systems
* Mobile Communication Systems PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input Capacitance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: V800ME08, V800ME08_Z. Please refer to the document for exact specifications by model.

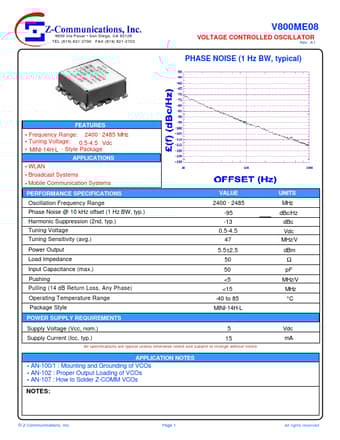

datasheet Preview Page 2

Datasheet Details

Part number
V800ME08, V800ME08_Z
Manufacturer
Z-Communications
File Size
192.02 KB
Datasheet
V800ME08_Z-Communications.pdf
Description
OSCILLATOR
Note
This datasheet PDF includes multiple part numbers: V800ME08, V800ME08_Z.
Please refer to the document for exact specifications by model.
