V580ME09, V580ME09_Z Datasheet - Z-Communications

V580ME09 OSCILLATOR

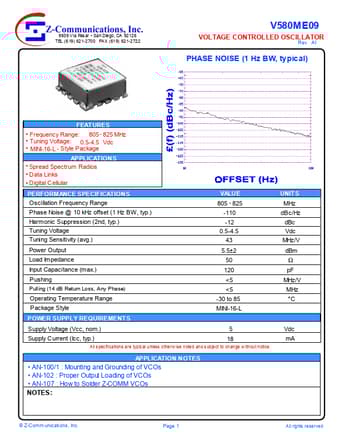

www.DataSheet4U.com 9939 Via Pas ar San Diego, CA 92126 TEL (619) 621-2700 FAX (619) 621-2722 V580ME09 VOLTAGE CONTROLLED OSCILLATOR Rev A1 PHASE NOISE (1 Hz BW, typical) FEAT URES Frequency Range: 805 - 825 MHz Tuning Voltage: 0.5-4.5 Vdc MINI-16-L - Style Package APPLICATIONS Spread Spectrum Radios Data Links Digital Cellular PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ..

V580ME09_Z-Communications.pdf

V580ME09 Datasheet Preview — This datasheet PDF includes multiple part numbers: V580ME09, V580ME09_Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

V580ME09, V580ME09_Z

Manufacturer:

Z-Communications

File Size:

217.79 KB

Description:

Oscillator.

Note:

This datasheet PDF includes multiple part numbers: V580ME09, V580ME09_Z.
Please refer to the document for exact specifications by model.
