V440MC02-LF - Voltage-Controlled Oscillator

Download the V440MC02-LF datasheet PDF (V440MC02-LF-Z included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for voltage-controlled oscillator.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (V440MC02-LF-Z-Communications.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number V440MC02-LF
Manufacturer Z-Communications
File Size 74.71 KB
Description Voltage-Controlled Oscillator
Datasheet download datasheet V440MC02-LF Datasheet

📁 Similar Datasheet

  • V440 - Display 0-5v DC (Sifam)
  • V441HA32 - Varistor (Littelfuse)
  • V441HA40 - Varistor (Littelfuse)
  • V445 - Display 0-5v DC (Sifam)
Other Datasheets by Z-Communications

Full PDF Text Transcription

Click to expand full text

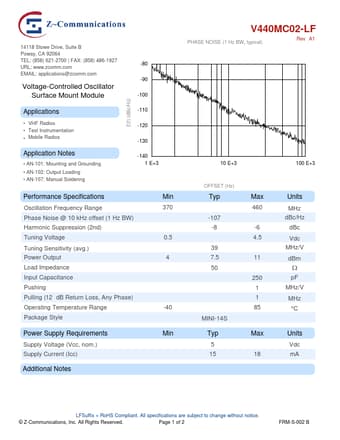

14118 Stowe Drive, Suite B Poway, CA 92064 TEL: (858) 621-2700 | FAX: (858) 486-1927 URL: www.zcomm.com EMAIL: applications@zcomm.com Voltage-Controlled Oscillator Surface Mount Module Applications • VHF Radios • Test Instrumentation • Mobile Radios Application Notes • AN-101: Mounting and Grounding • AN-102: Output Loading • AN-107: Manual Soldering £(f) (dBc/Hz) -80 -90 -100 -110 -120 -130 -140 1 E+3 Performance Specifications Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW) Harmonic Suppression (2nd) Tuning Voltage Tuning Sensitivity (avg.) Power Output Load Impedance Input Capacitance Pushing Pulling (12 dB Return Loss, Any Phase) Operating Temperature Range Package Style Power Supply Requirements Supply Voltage (Vcc, nom.
