V165ME01 - OSCILLATOR

Download the V165ME01 datasheet PDF. This datasheet also covers the V165ME01_Z variant, as both devices belong to the same oscillator family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (V165ME01_Z-Communications.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number V165ME01
Manufacturer Z-Communications
File Size 73.98 KB
Description OSCILLATOR
Datasheet download datasheet V165ME01 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
V162X EXTERNAL THREADED END-CONNECTION LINEAR VALVE PN16 Trend
V162X-15-0.6 EXTERNAL THREADED END-CONNECTION LINEAR VALVE PN16 Trend
V162X-15-1.0 EXTERNAL THREADED END-CONNECTION LINEAR VALVE PN16 Trend
V162X-15-1.6 EXTERNAL THREADED END-CONNECTION LINEAR VALVE PN16 Trend
V162X-15-2.5 EXTERNAL THREADED END-CONNECTION LINEAR VALVE PN16 Trend

Other Datasheets by Z-Communications

Part Number Description
V165ME01-LF OSCILLATOR
V165ME03-LF VCOs

Full PDF Text Transcription

Click to expand full text

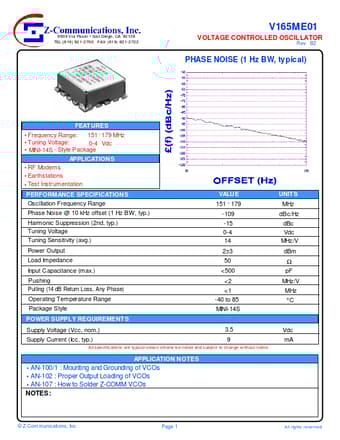

www.DataSheet4U.com V165ME01 9939 Via Pasar • San Diego, CA 92126 TEL (619) 621-2700 FAX (619) 621-2722 VOLTAGE CONTROLLED OSCILLATOR Rev B2 PHASE NOISE (1 Hz BW, typical) FEAT URES • Frequency Range: 151 - 179 MHz • Tuning Voltage: 0-4 Vdc • MINI-14S - Style Package APPLICATIONS • RF Modems • Earthstations • Test Instrumentation PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Tuning Voltage Tuning Sensitivity (avg.) Power Output Load Impedance Input Capacitance (max.) Pushing Pulling (14 dB Return Loss, Any Phase) VALUE 151 - 179 -109 -15 0-4 14 2±3 50 <500 <2 <1 -40 to 85 MINI-14S 3.
