SMV3300A, SMV3300A_Z - OSCILLATOR

SMV3300A Description

www.DataSheet4U.com 9939 Via Pasar * San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 SMV3300A VOLTAGE CONTROLLED OSCILLATOR Rev A1 .

SMV3300A Features

* Frequency Range: 3200 - 3400 MHz
* Tuning Voltage: 0.5-4.5 Vdc

SMV3300A Applications

* Personal Communications Systems
* WLAN
* Portable Radios PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input Capacitanc

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMV3300A, SMV3300A_Z. Please refer to the document for exact specifications by model.

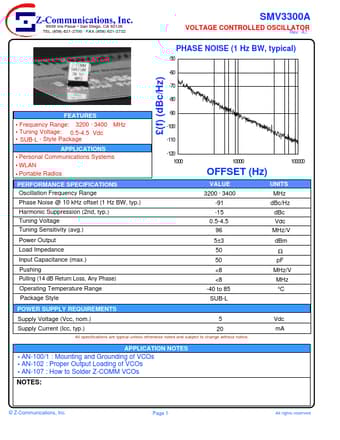

datasheet Preview Page 2

Datasheet Details

Part number
SMV3300A, SMV3300A_Z
Manufacturer
Z-Communications
File Size
161.60 KB
Datasheet
SMV3300A_Z-Communications.pdf
Description
OSCILLATOR
Note
This datasheet PDF includes multiple part numbers: SMV3300A, SMV3300A_Z.
Please refer to the document for exact specifications by model.
