PSA2200C - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP

This page provides the datasheet information for the PSA2200C, a member of the PSA2200C_Z LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP family.

Description

Prescaler: 32 NOTES: Reference Oscillator Signal: 5 MHz

Features

  • Frequency Range: 2160 - 2222 MHz www. DataSheet4U. com.
  • Step Size: 1000 KHz.
  • PLL-24H - Style Package.

📥 Download Datasheet

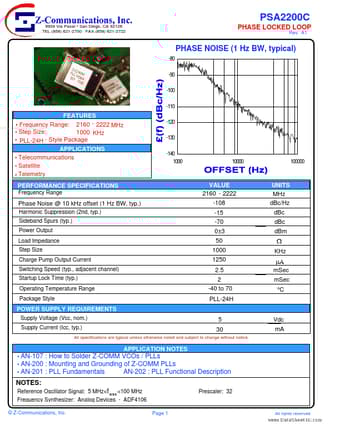

Datasheet preview – PSA2200C

Datasheet Details

Part number PSA2200C
Manufacturer Z-Communications
File Size 104.50 KB
Description LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
Datasheet download datasheet PSA2200C Datasheet
Additional preview pages of the PSA2200C datasheet.

📁 Similar Datasheet

  • PSA23-11EWA - 56.8mm (2.3 INCH) 16 SEGMENT SINGLE DIGIT ALPHANUMERIC DISPLAY (Kingbright Corporation)
  • PSA23-11GWA - 56.8mm (2.3 INCH) 16 SEGMENT SINGLE DIGIT ALPHANUMERIC DISPLAY (Kingbright Corporation)
  • PSA23-11SRWA - 56.8mm (2.3 INCH) 16 SEGMENT SINGLE DIGIT ALPHANUMERIC DISPLAY (Kingbright Corporation)
  • PSA23-11YWA - 56.8mm (2.3 INCH) 16 SEGMENT SINGLE DIGIT ALPHANUMERIC DISPLAY (Kingbright Corporation)
  • PSA241.5 - Positive Switching Regulator (Bel Fuse)
  • PSA241.5-7iR - 1...6 A Switching Regulators (Power-One)
  • PSA242.5 - Positive Switching Regulator (Bel Fuse)
  • PSA242.5-2 - 1...6 A Switching Regulators (Power-One)
  • PSA-0012+ - High Dynamic Range Monolithic IF Amplifier (Mini-Circuits)
  • PSA-12 - Power Supplies (Banner)
Other Datasheets by Z-Communications
  • PSA2100C - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PSA2130C - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PSA2444A - Telecommunications - Satellite . Telemetry
  • PSA2570C - Telecommunications - Satellite
  • PSA2700A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PSA2800C - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PSA0210A - LOW COST - HIGH PERFORMANCE PHAE LOCKED LOOP
  • PSA0210A - PHASE LOCKED LOOP

Full PDF Text Transcription

Click to expand full text
PSA2200C 9939 Via Pasar • San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 PHASE LOCKED LOOP Rev A1 PHASE NOISE (1 Hz BW, typical) -80 -90 -100 -110 FEATURES • Frequency Range: 2160 - 2222 MHz www.DataSheet4U.com • Step Size: 1000 KHz • PLL-24H - Style Package APPLICATIONS • Telecommunications • Satellite • Telemetry PERFORMANCE SPECIFICATIONS Frequency Range -120 -130 -140 1000 10000 100000 VALUE 2160 - 2222 -108 -15 -70 0±3 50 1000 1250 2.5 2 -40 to 70 PLL-24H 5 30 APPLICATION NOTES Phase Noise @ 10 kHz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Sideband Spurs (typ.) Power Output Load Impedance Step Size Charge Pump Output Current Switching Speed (typ., adjacent channel) Startup Lock Time (typ.
