YB1109M Boost Converter

YB1109M Description

1.2MHz, 2A Output Current, Boost Converter YB1109M/YB1109MB * General .
The YB1109M/YB1109MB is a high efficiency current-mode boost converter with a fixed operation frequency.

YB1109M Features

* WideInputRange: 2.5-6V Input,
* YB1109M/YB1109MB Up To 2A Output Current
* 1.2MHz Switching Frequency
* Low RDS(ON): 70mΩ
* Up to 93% Efficiency . Over Voltage Protection
* Under-Voltage Lockout Protection
* Over-Temperature Protection
* Internal Soft Start

📥 Download Datasheet

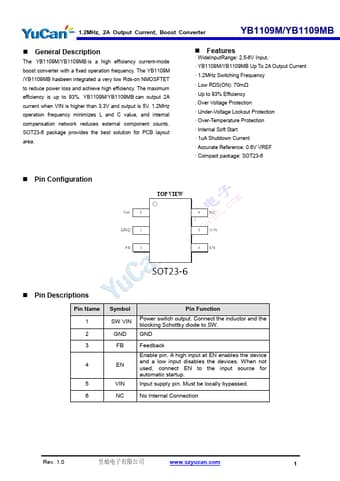

Preview of YB1109M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
YB1109M
Manufacturer
YuCan
File Size
2.82 MB
Datasheet
YB1109M-YuCan.pdf
Description
Boost Converter
