MVP36CA - Transient Voltage Suppression Diodes

Product Overview

📥 Download Datasheet

MVP36CA Transient Voltage Suppression Diodes by Yint - Datasheet Preview — Datasheet preview – MVP36CA

Datasheet Details

Part number	MVP36CA
Manufacturer	Yint
File Size	360.85 KB
Description	Transient Voltage Suppression Diodes
Datasheet	MVP36CA Datasheet
Note	This datasheet PDF includes multiple part numbers: MVP36CA, MVP24CA. Please refer to the document for exact specifications by model.

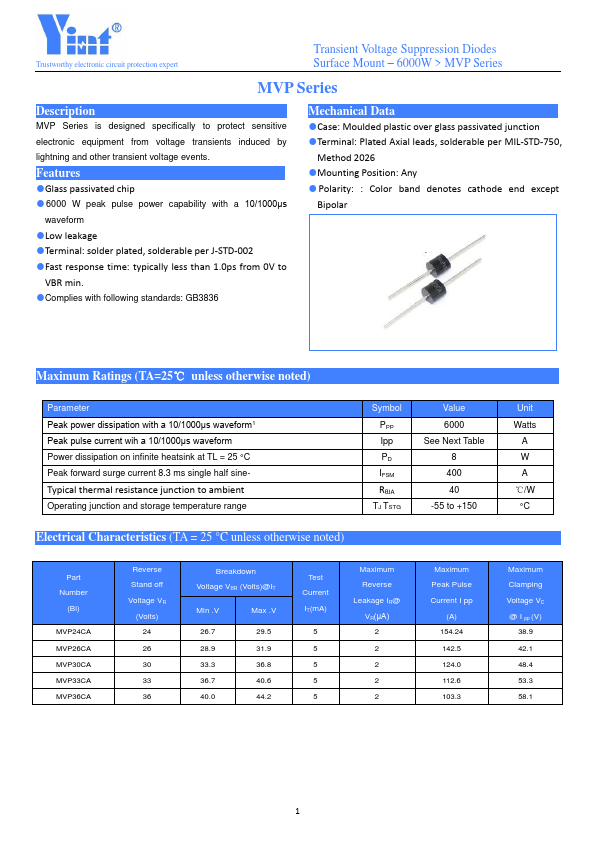

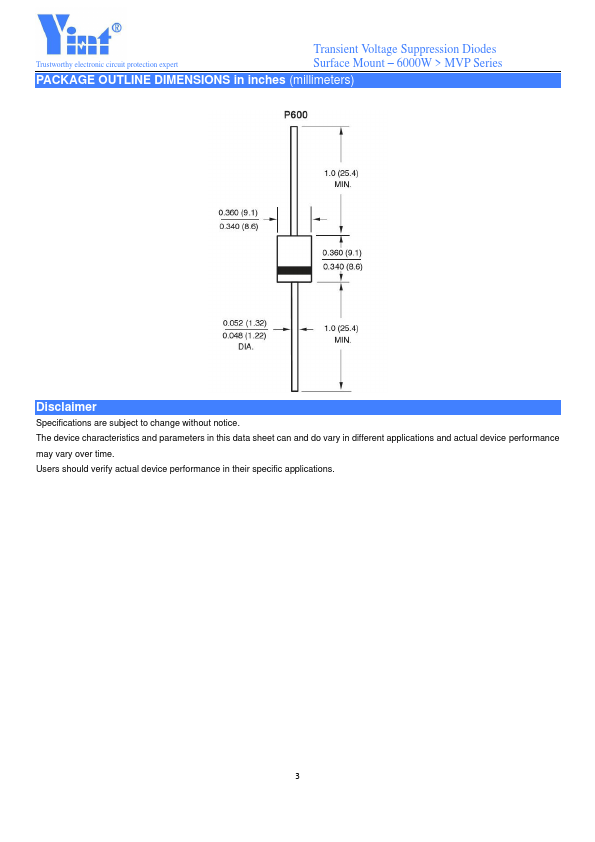

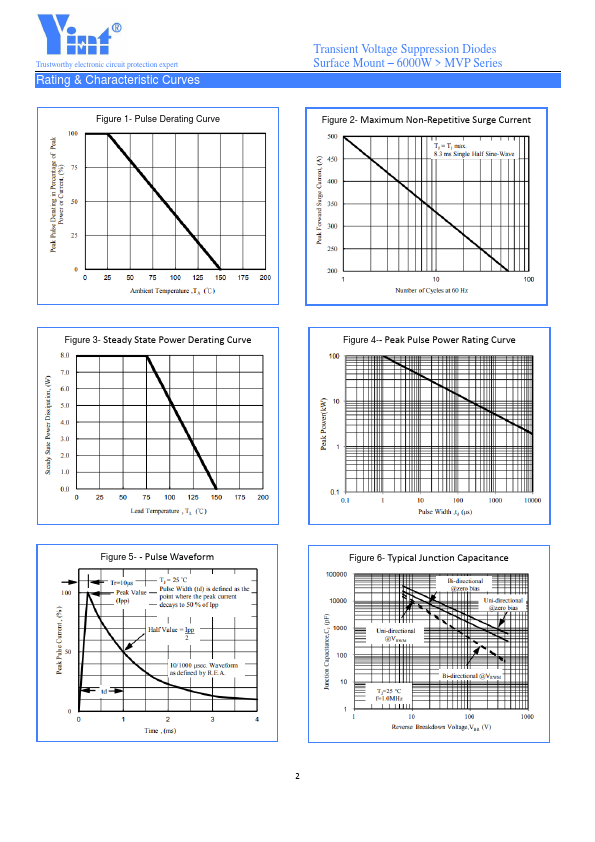

Additional preview pages of the MVP36CA datasheet.

Product details

Description

MVP Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

Glass passivated chip.
6000 W peak pulse power capability with a 10/1000μs waveform.
Low leakage.
Terminal: solder plated, solderable per J-STD-002.
Fast response time: typically less than 1.0ps from 0V to VBR min.
Complies with following standards: GB3836 Mechanical Data.
Case: Moulded plastic over glass passivated junction.
Terminal: Plated Axial leads, solderable per MIL-STD-750, Method 2026.
Mounting Position: Any.
Polarity: : Color band denotes c.
