PD0500U03-M1 - Power Divider/Combiner

Yantel

📥 Download Datasheet

PD0500U03-M1 Datasheet Preview — Preview of PD0500U03-M1 PDF

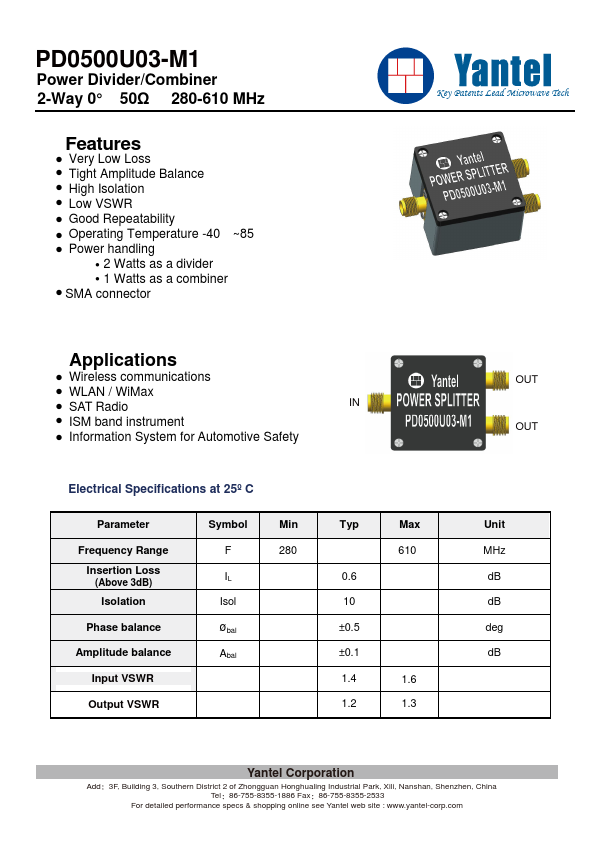

datasheet Preview Page 2

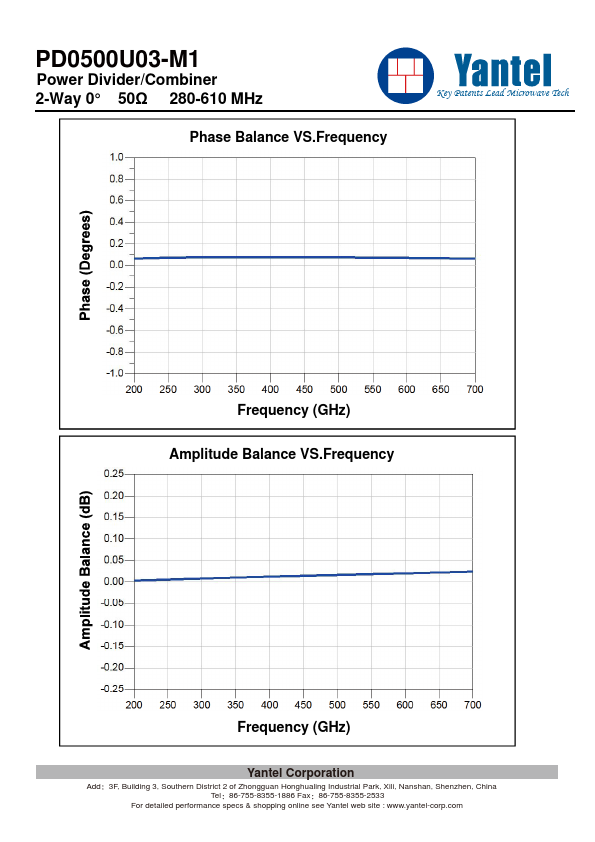

datasheet Preview Page 3

Datasheet Details

Part number	PD0500U03-M1
Manufacturer	Yantel
File Size	617.29 KB
Description	Power Divider/Combiner
Datasheet	PD0500U03-M1-Yantel.pdf

PD0500U03-M1 Product details

Features

Very Low Loss.
Tight Amplitude Balance.
High Isolation.
Low VSWR.
Good Repeatability.
Operating Temperature -40℃~85℃.
Power handling.
2 Watts as a divider.
1 Watts as a combiner.
SMA connector Key Patents Lead Microwave Tech.
