Attenuation (dB)

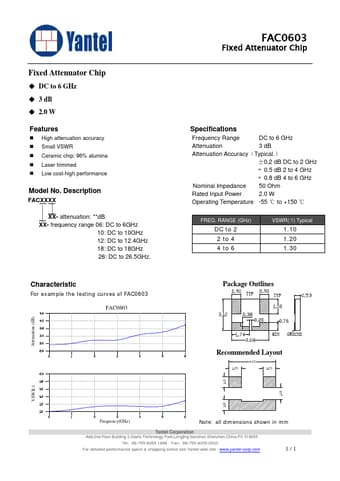

Fixed Attenuator Chip
DC to 6 GHz 3 dB 2.0 W
Features
High attenuation accuracy Small VSWR Ceramic chip: 96% alumina Laser trimmed Low cost-high performance
Model No. Description
FACXXXX
XX- attenuation: **dB. XX- frequency range 06: DC to 6GHz
10: DC to 10GHz 12: DC to 12.4GHz 18: DC to 18GHz 26: DC to 26.5GHz.
Characteristic
For example the testing curves of FAC0603
FAC0603
FAC0603
Fixed Attenuator Chip
Specifications
Frequency Range
DC to 6 GHz
Attenuation
3 dB
Attenuation Accuracy（Typical.）
±0.2 dB DC to 2 GHz
+ 0.5 dB 2 to 4 GHz
+ 0.8 dB 4 to 6 GHz
Nominal Impedance 50 Ohm
Rated Input Power
2.0 W
Operating Temperature -55 ℃ to +150 ℃
FREQ. RANGE (GHz)
DC to 2 2 to 4 4 to 6
VSWR(:1) Typical
1.10 1.20 1.
