BD1200U520-1305 Ultra Low Profile 1305 Balun

BD1200U520-1305 Description

Preliminary Data Sheet BD1200U520-1305 Ultra Low Profile 1305 Balun 50Ω to 200Ω Balanced Key Patents Lead Microwave Tech .

BD1200U520-1305 Features

* 1100~1300 MHz
* 0.85mm Height Profile
* 50Ohm to 2x100 Ohm
* High CMRR
* Low Insertion Loss
* Input to Output DC Isolation
* Surface Mountable
* Tape & Reel
* Non-conductive Surface

BD1200U520-1305 Applications

* WiMAX
* GPS
* UWB
* Bluetooth
* Zigbee

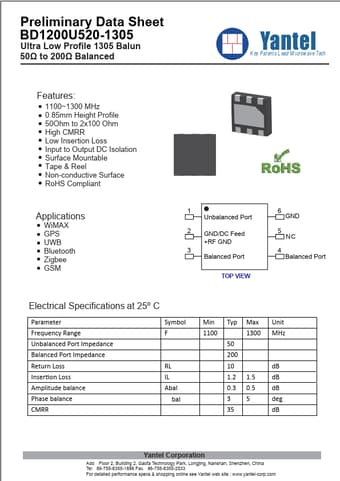

* GSM 1 Unbalanced Port 2 GND/DC Feed +RF GND 3 Balanced Port TOP VIEW 6 GND 5 NC 4 Balanced Port Electrical Specifications at 25º C Parameter Frequency Range Unbalanced Port Impedance Balanced Port Impedance Return Loss Insertion

📥 Download Datasheet

Preview of BD1200U520-1305 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD1200U520-1305
Manufacturer
Yantel
File Size
188.99 KB
Datasheet
BD1200U520-1305-Yantel.pdf
Description
Ultra Low Profile 1305 Balun
