YCMB2025 Datasheet (Yangzhou Yangjie)

YCMB2025, 20A SCRs

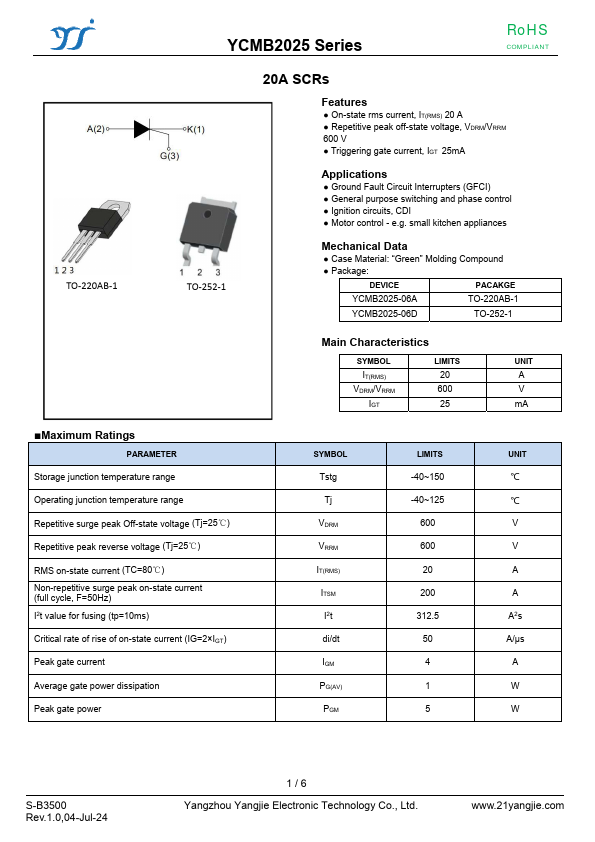

YCMB2025 Series RoHS COMPLIANT TO‐220AB‐1 TO‐252‐1 Maximum Ratings PARAMETER Storage junction temperature range Operating junction temperature range Repetitive surge peak Off-state voltage (Tj=25℃) Repetitive peak reverse voltage (Tj=25℃) RMS on-state current (TC=80℃) Non-repetitive surge peak on-state current (full cycle, F=50Hz) I2t value for fusing (tp=10ms) Critical rate of rise of on-state current (IG=2×IGT) Peak gate current Average gate power dissipation Peak gate power 20A SCRs

YCMB2025 Features

* On-state rms current, IT(RMS) 20 A

* Repetitive peak off-state voltage, VDRM/VRRM 600 V

* Triggering gate current, IGT 25mA Applications

* Ground Fault Circuit Interrupters (GFCI)

* General purpose switching and phase control

* Ignition circuits, CDI

* Motor control -
