GR1K - Surface Mount Fast Recovery Rectifier

Yangzhou Yangjie

Download the GR1K datasheet PDF. This datasheet also covers the GR1A variant, as both devices belong to the same surface mount fast recovery rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

Low profile package.
Ideal for automated placement.
Glass passivated chip junction.
High forward surge capability.
Fast reverse recovery time.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical.

📥 Download Datasheet

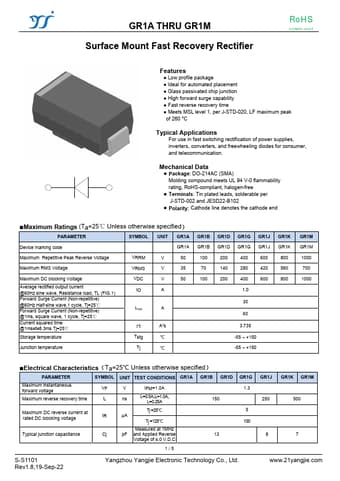

GR1K surface mount fast recovery rectifier by Yangzhou Yangjie - Datasheet Preview — Note: The manufacturer provides a single datasheet file (GR1A-YangzhouYangjie.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	GR1K
Manufacturer	Yangzhou Yangjie
File Size	217.18 KB
Description	Surface Mount Fast Recovery Rectifier
Datasheet	GR1K Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
GR1K	SURFACE MOUNT FAST SWITCHING RECTIFIER	GOOD-ARK Electronics
GR1K	GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIERS	EIC discrete Semiconductors
GR1001	High Brightness LED Driver	Grenergy
GR1005	1A Leaded Type General Purpose Rectifiers	CITC
GR101	1A Leaded Type General Purpose Rectifiers	CITC

Other Datasheets by Yangzhou Yangjie

Part Number	Description
GR1A	Surface Mount Fast Recovery Rectifier
GR1B	Surface Mount Fast Recovery Rectifier
GR1D	Surface Mount Fast Recovery Rectifier
GR1G	Surface Mount Fast Recovery Rectifier
GR1J	Surface Mount Fast Recovery Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

GR1A THRU GR1M Surface Mount Fast Recovery Rectifier RoHS COMPLIANT Features ● Low profile package ● Ideal for automated placement ● Glass passivated chip junction ● High forward surge capability ● Fast reverse recovery time ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in fast switching rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication.
