ES1FW, ES1AW - Super Fast Recovery Rectifier

Yangzhou Yangjie

The ES1FW by Yangzhou Yangjie is a Super Fast Recovery Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

ES1FW Super Fast Recovery Rectifier by Yangzhou Yangjie - Datasheet Preview — Official preview page of the ES1FW Super Fast Recovery Rectifier datasheet (Yangzhou Yangjie).

Datasheet Details

Part number	ES1FW, ES1AW
Manufacturer	Yangzhou Yangjie
File Size	216.58 KB
Description	Super Fast Recovery Rectifier
Datasheet	ES1AW-YangzhouYangjie.pdf
Note	This datasheet PDF includes multiple part numbers: ES1FW, ES1AW. Please refer to the document for exact specifications by model.

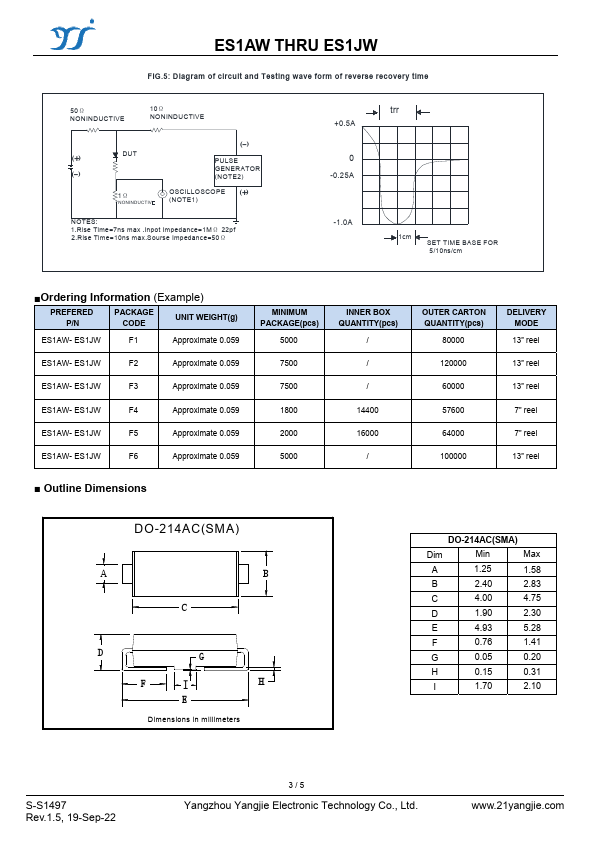

Additional preview pages of the ES1FW datasheet.

ES1FW Product details

Features

Low profile package.
Ideal for automated placement.
Glass passivated chip junction.
High forward surge capability.
Super Fast reverse recovery time.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical.
