EM516, EM513 General Purpose Rectifier

Yangzhou Yangjie

Description

EM513 THRU EM518 RoHS COMPLIANT General Purpose Rectifier .

📥 Download Datasheet

EM516 Datasheet Preview — This datasheet PDF includes multiple part numbers: EM516, EM513. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: EM516, EM513
Manufacturer: Yangzhou Yangjie
File Size: 208.18 KB
Datasheet: EM513-YangzhouYangjie.pdf
Description: General Purpose Rectifier
Note: This datasheet PDF includes multiple part numbers: EM516, EM513.
Please refer to the document for exact specifications by model.

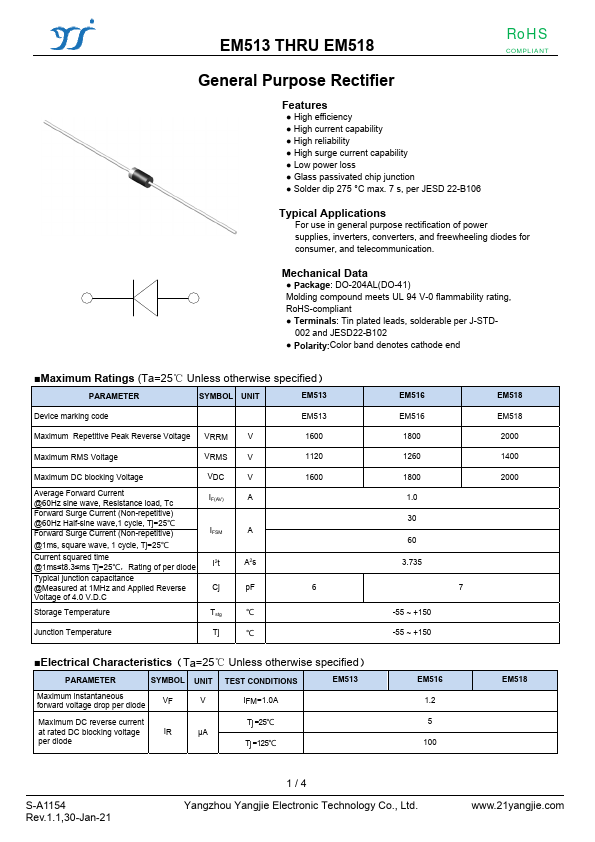

Features

* High efficiency
* High current capability
* High reliability
* High surge current capability
* Low power loss
* Glass passivated chip junction

Applications

* For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication. Mechanical Data

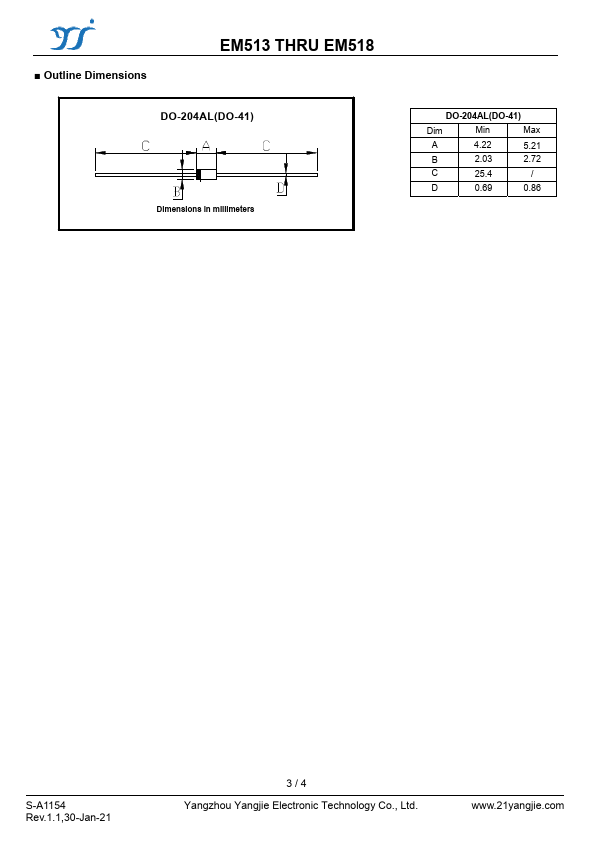

* Package: DO-204AL(DO-41) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solde
