1H1

The 1H1 is High Efficient Rectifier designed by Yangzhou Yangjie.

Product Overview

Yangzhou Yangjie

Part number	1H1
Manufacturer	Yangzhou Yangjie
File Size	189.29 KB
Description	High Efficient Rectifier
Datasheet	1H1-YangzhouYangjie.pdf

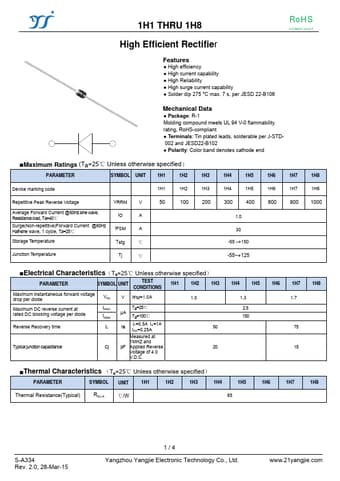

Additional preview pages of the 1H1 datasheet.

High efficiency.
High current capability.
High Reliability.
High surge current capability.
Solder dip 275 °C max. 7 s, per JESD 22-B106 Mechanical Data.
Package: R-1 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant.
Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102.
Polarity: Color band denotes cathode end.
Maximum Ratings (Ta=25℃ Unless otherwise specified）.
