LJE0359AM-3RT - TH Earphone Jacks

Download the LJE0359AM-3RT datasheet PDF. This datasheet also covers the LJE0252-B variant, as both devices belong to the same th earphone jacks family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LJE0252-B-Yamaichi.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LJE0359AM-3RT
Manufacturer Yamaichi
File Size 230.74 KB
Description TH Earphone Jacks
Datasheet download datasheet LJE0359AM-3RT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LJE0368-4R Earphone Jack Lih Sheng

Other Datasheets by Yamaichi

Part Number Description
LJE0359AM-3TS TH Earphone Jacks
LJE0359AM-2T TH Earphone Jacks
LJE0359AM-4R TH Earphone Jacks
LJE0359AM-4T TH Earphone Jacks
LJE0359AM-5 TH Earphone Jacks

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

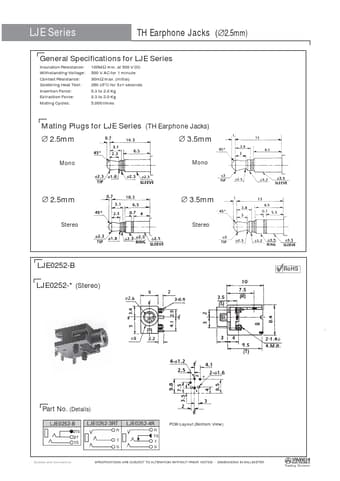

LJE Series TH Earphone Jacks (∅2.5mm) General Specifications for LJE Series Insulation Resistance: Withstanding Voltage: Contact Resistance: Soldering Heat Test: Insertion Force: Extraction Force: Mating Cycles: 100MΩ min. at 500 V DC 500 V AC for 1 minute 30mΩ max. (initial) 260 ±5°C for 5±1 seconds 0.3 to 2.0 Kg 0.3 to 2.0 Kg 5,000 times Mating Plugs for LJE Series (TH Earphone Jacks) ∅ 2.5mm ∅ 3.5mm Mono Mono ∅ 2.5mm Stereo ∅ 3.5mm Stereo LJE0252-B LJE0252-* (Stereo) RoHS Part No. (Details) PCB-Layout (Bottom View) Sockets and Connectors SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER Trading Division LJE Series LJE0357-B TH Earphone Jacks (∅3.5mm) RoHS Part No.
