VD120505S-2W DUAL DC-DC CONVERTER

SIP Pin 1 2 4 6 8 10 Connection Vin Input GND Input 0V1 OUTput +VO1 OUTput 0V2 OUTput +VO2 OUTput SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. Duoli Industrial Zone, Meihua Rd. Futian District, Shenzhen, China E-mail:sales02@szsunyuan.com Tel:+86-755-83100080 Fax:+86-755-83116652 Copyright @ Shenzhen S.

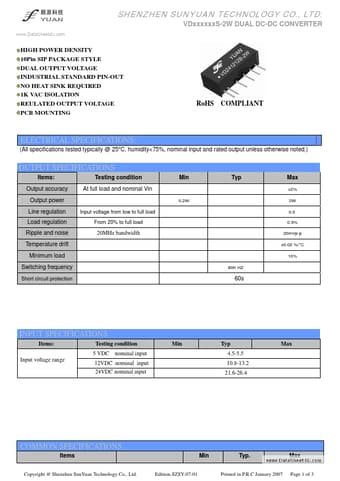

15:38 www.DataSheet4U.com SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. VDxxxxxxS-2W DUAL DC-DC CONVERTER HIGH POWER DENSITY 10Pin SIP PACKAGE STYLE DUAL OUTPUT VOLTAGE INDUSTRIAL STANDARD PIN-OUT NO HEAT SINK REQUIRED 1K VAC ISOLATION REULATED OUTPUT VOLTAGE PCB MOUNTING RoHS COMPLIANT ELECTRICAL SPECIFICATIONS: (All specifications tested typically @ 25°C, humidity<75%, nominal input and rated output unless otherwise noted.) OUTPUT SPECIFICATIONS Items: Testing condition Output accuracy At ful.
