VA05xxS-2W - DC/DC Converter

General Description

SHENZHEN SUNYUAN TECHNOLOGY CO., LTD.

3F, 3Bldg, Duoli Industrial Zone, Meihua Rd.

📥 Download Datasheet

Datasheet Details

Part number VA05xxS-2W
Manufacturer YUAN
File Size 117.30 KB
Description DC/DC Converter
Datasheet download datasheet VA05xxS-2W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VA033 Unity Gain Video Buffer VTC
VA033DJ Unity Gain Video Buffer VTC
VA0805 Surface Mount Varistors KEMET
VA0805K121R014 Surface Mount Varistors KEMET
VA0805K121R017 Surface Mount Varistors KEMET

Other Datasheets by YUAN

Part Number Description
VA05xxS-1W DC/DC Converter
VA0503S-1W DC-DC CONVERTER
VA0503S-2W DC-DC CONVERTER
VA0505S-1W DC-DC CONVERTER
VA0505S-2W DC-DC CONVERTER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

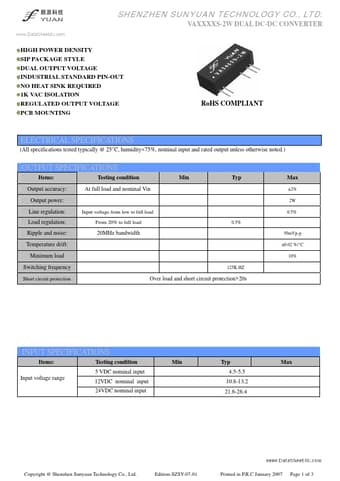

15:36 SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. VAXXXXS-2W DUAL DC-DC CONVERTER www.DataSheet4U.com HIGH POWER DENSITY SIP PACKAGE STYLE DUAL OUTPUT VOLTAGE INDUSTRIAL STANDARD PIN-OUT NO HEAT SINK REQUIRED 1K VAC ISOLATION REGULATED OUTPUT VOLTAGE PCB MOUNTING RoHS COMPLIANT ELECTRICAL SPECIFICATIONS (All specifications tested typically @ 25°C, humidity<75%, nominal input and rated output unless otherwise noted.) OUTPUT SPECIFICATIONS Items: Output accuracy: Output power: Line regulation: Load regulation: Ripple and noise: Temperature drift: Minimum load Switching frequency Short circuit protection 125K HZ Testing condition At full load and nominal Vin Min Typ Max ±2% 2W Input voltage from low to full load From 20% to full load 0.5% 0.5% 20MHz bandwidth 50mVp-p ±0.
