SR22 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SR22 Description

DATA SHEET SEMICONDUCTOR SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE- 20 to 100 Volts CURRENT- 2.0 Amperes SR22~SR210 .

SR22 Applications

* Low profile package Built-in strain relief Metal to silicon rectifier. majority carrier conduction Low power loss,high efficiency High surge capacity For use in low voltage high frequency inverters, free wheeling, and polarity protection applications High temperature soldering guaranteed: 260°C /10

📥 Download Datasheet

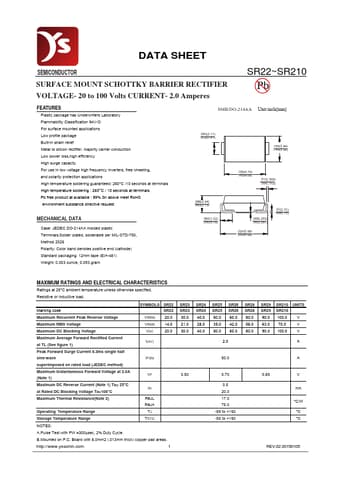

Preview of SR22 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SR22
Manufacturer
YS
File Size
440.92 KB
Datasheet
SR22-YS.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
