SB830CT - SCHOTTKY BARRIERRECTIFIERS

Download the SB830CT datasheet PDF. This datasheet also covers the SB820CT variant, as both devices belong to the same schottky barrierrectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound. Exceeds environmental standards of MILS19500/228 Low power loss, high efficiency. Low forwrd voltge, high current capability High surge capacity. For use in low voltage,high frequency inverters free wheeling , and polarlity protection.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SB820CT-YS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SB830CT
Manufacturer YS
File Size 899.78 KB
Description SCHOTTKY BARRIERRECTIFIERS
Datasheet download datasheet SB830CT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SB830CT 8.0A DUAL SCHOTTKY BARRIER RECTIFIER WON-TOP
SB830CT 8A Dual Schottky Barrier Rectifier ELECFORTUNE
SB830CT SCHOTTKY BARRIER RECTIFIERS Pan Jit International Inc.
SB830 8.0A SCHOTTKY BARRIER RECTIFIER WON-TOP
SB830 SCHOTTKY BARRIER RECTIFIERS Pan Jit International Inc.

Other Datasheets by YS

Part Number Description
SB8100CT SCHOTTKY BARRIERRECTIFIERS
SB820CT SCHOTTKY BARRIERRECTIFIERS
SB840CT SCHOTTKY BARRIERRECTIFIERS
SB850CT SCHOTTKY BARRIERRECTIFIERS
SB860CT SCHOTTKY BARRIERRECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

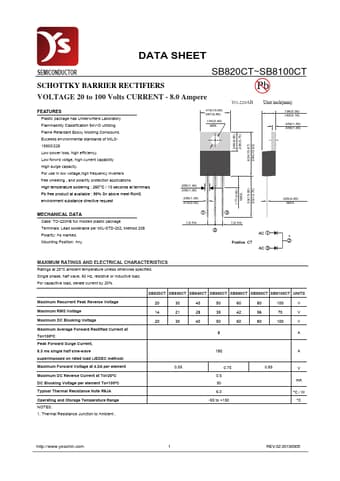

DATA SHEET SEMICONDUCTOR SB820CT~SB8100CT SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 100 Volts CURRENT - 8.0 Ampere FEATURES Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound. Exceeds environmental standards of MILS19500/228 Low power loss, high efficiency. Low forwrd voltge, high current capability High surge capacity. For use in low voltage,high frequency inverters free wheeling , and polarlity protection applications. High temperature soldering : 260OC / 10 seconds at terminals Pb free product at available : 99% Sn above meet RoHS environment substance directive request .419(10.66) .387(9.85) .134(3.40) MIN. .055(1.40) .039(1.00) .039(1.00) .019(0.50) TO-220AB .269(6.85) .226(5.75) .624(15.87) .584(13.
