S18 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

S18 Description

DATA SHEET SEMICONDUCTOR S12 THRU S110 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE- 20 to 100 Volts CURRENT- 1.0 Amperes .

S18 Applications

* Low profile package Built-in strain relief Metal to silicon rectifier. majority carrier conduction Low power loss,high efficiency High surge capacity High current capacity ,low VF For use in low voltage high frequency inverters, free wheeling, and polarity protection applications. High temperature s

📥 Download Datasheet

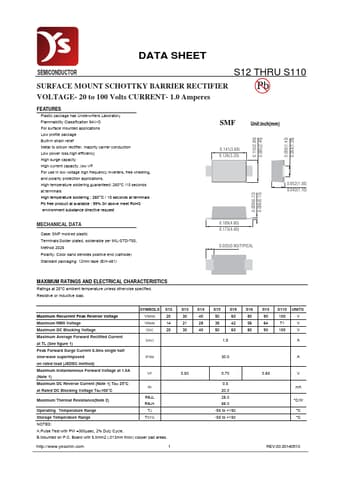

Preview of S18 PDF
datasheet Preview Page 2

Datasheet Details

Part number
S18
Manufacturer
YS
File Size
385.36 KB
Datasheet
S18-YS.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
