12507HS-xxxxx - 1.25mm PITCH CONNECTOR

The 12507HS-xxxxx by YEONHO ELECTRONICS is a 1.25mm PITCH CONNECTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 12507HS-xxxxx 1.25mm PITCH CONNECTOR datasheet (YEONHO ELECTRONICS).

Datasheet Details

Part number 12507HS-xxxxx
Manufacturer YEONHO ELECTRONICS
File Size 914.29 KB
Description 1.25mm PITCH CONNECTOR
Datasheet download datasheet 12507HS-xxxxx_YEONHOELECTRONICS.pdf

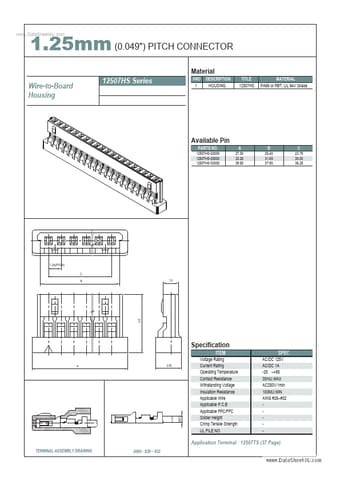

Additional preview pages of the 12507HS-xxxxx datasheet.

12507HS-xxxxx Product details

Description

HOUSING TITLE 12507HS MATERIAL PA66 or PBT, UL 94V Grade Wire-to-Board Housing Available Pin 12507HS-20000 12507HS-25000 12507HS-30000 PARTS NO.27.00 33.25 39.50 A 25.40 31.65 37.90 B 23.75 30.00 36.25 C 1.25(PITCH) C B 1.5 5.8 Specification A 2.55 Voltage Rating Current Rating Operating Temperature Contact Resistance Withstanding Voltage Insulation Resistance Applicable Wire Applicable P.C.B Applicable FPC/FFC Solder Height Crimp Tensile Strength UL FILE NO ITEM AC/DC 125V AC/DC
