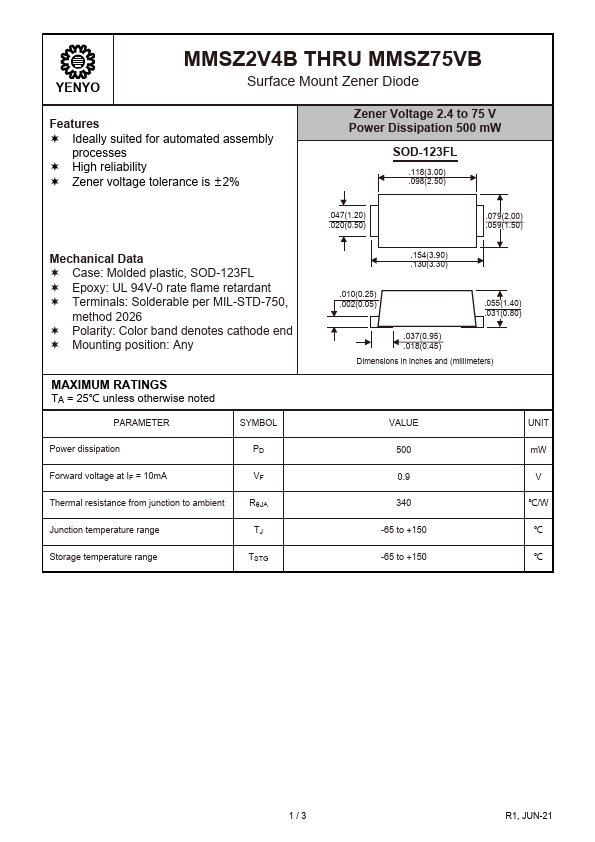

MMSZ4V3B - Surface Mount Zener Diode

Product Overview

📥 Download Datasheet

MMSZ4V3B Surface Mount Zener Diode by YENYO - Datasheet Preview — Datasheet preview – MMSZ4V3B

Datasheet Details

Part number	MMSZ4V3B
Manufacturer	YENYO
File Size	1.42 MB
Description	Surface Mount Zener Diode
Datasheet	MMSZ4V3B Datasheet
Note	This datasheet PDF includes multiple part numbers: MMSZ4V3B, MMSZ2V4B. Please refer to the document for exact specifications by model.
Additional preview pages of the MMSZ4V3B datasheet.

Product details

Features

Ideally suited for automated assembly processes.
High reliability.
Zener voltage tolerance is ±2% Zener Voltage 2.4 to 75 V Power Dissipation 500 mW SOD-123FL .118(3.00) .098(2.50) Mechanical Data.
Case: Molded plastic, SOD-123FL.
Epoxy: UL 94V-0 rate flame retardant.
Terminals: Solderable per MIL-STD-750, method 2026.
Polarity: Color band denotes cathode end.
Mounting position: Any.
