KBU608G - Glass Passivated Bridge Rectifier

Download the KBU608G datasheet PDF. This datasheet also covers the KBU6005G variant, as both devices belong to the same glass passivated bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • High surge current capability.
  • Ideal for printed circuit boards Mechanical Data.
  • Case: Molded plastic body over passivated junctions.
  • Terminals: Solderable per MIL-STD-202, method 208.
  • Polarity: As marked on body.
  • Mounting position: Any.
  • Weight: 8.0 grams Voltage Range 50 to 1000 V Current 6.0 Ampere KBU .760(19.3) .70(17.8) MAX .66(16.8) .935.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KBU6005G-YENYO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number KBU608G
Manufacturer YENYO
File Size 559.18 KB
Description Glass Passivated Bridge Rectifier
Datasheet download datasheet KBU608G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KBU608G 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER WON-TOP
KBU608G GLASS PASSIVATED BRIDGE RECTIFIERS HY ELECTRONIC
KBU608 6.0A SINGLE PHASE BRIDGE RECTIFIER WON-TOP
KBU608 6.0A Single-Phase Silicon Bridge Rectifier SEP ELECTRONIC
KBU608 6 AMP SILICON BRIDGE RECTIFIER Fuji Electric

Other Datasheets by YENYO

Part Number Description
KBU6005G Glass Passivated Bridge Rectifier
KBU601G Glass Passivated Bridge Rectifier
KBU602G Glass Passivated Bridge Rectifier
KBU604G Glass Passivated Bridge Rectifier
KBU606G Glass Passivated Bridge Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

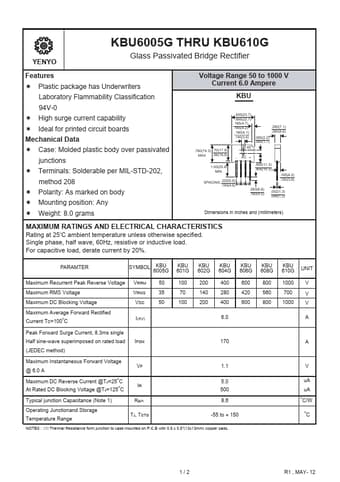

YENYO KBU6005G THRU KBU610G Glass Passivated Bridge Rectifier Features  Plastic package has Underwriters Laboratory Flammability Classification 94V-0  High surge current capability  Ideal for printed circuit boards Mechanical Data  Case: Molded plastic body over passivated junctions  Terminals: Solderable per MIL-STD-202, method 208  Polarity: As marked on body  Mounting position: Any  Weight: 8.0 grams Voltage Range 50 to 1000 V Current 6.0 Ampere KBU .760(19.3) .70(17.8) MAX .66(16.8) .935(23.7) .895(22.7) .185(4.7) .165(4.2) .160(4.1) .140(3.6) 45o .280(7.1) .260(6.6) .085(2.2) .065(1.7) - AC + 1.00(25.4) MIN SPACING .220(5.6) .180(4.6) .455(11.3) .405(10.3) .165(4.2) .150(3.8) .260(6.8) .180(4.5) .052(1.3) .048(1.
