20F001NG - 10 BASE T Filter PTH module

Description

The 20F001NG is a low pass filter module that have been specifically designed to implement the functionality of analog interface for 10 Base-T Ethernet application .

📥 Download Datasheet

Datasheet Details

Part number 20F001NG
Manufacturer YCL
File Size 51.71 KB
Description 10 BASE T Filter PTH module
Datasheet download datasheet 20F001NG Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
20F001N 10 Base T Filter with Common Choke ETC
20F020 Ultra-fast diode Jingdao
20F-01 10BASE-T LOW PASS FILTER GROUP-TEK
20F-01A 10BASE-T LOW PASS FILTER GROUP-TEK
20F-17S 10BASE-T LOW PASS FILTER GROUP-TEK

Other Datasheets by YCL

Part Number Description
20F001N 10 Base T Low Pass Filter
20F001 10 Base T Low Pass Filter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

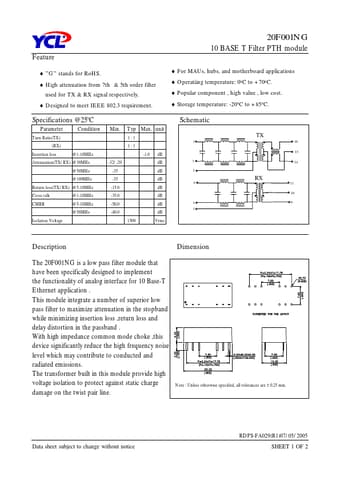

Feature 20F001NG 10 BASE T Filter PTH module ♦ ”G” stands for RoHS. ♦ High attenuation from 7th & 5th order filter used for TX & RX signal respectively. ♦ Designed to meet IEEE 802.3 requirement. ♦ For MAUs, hubs, and motherboard applications ♦ Operatiing temperature: 00C to +700C. ♦ Popular component , high value , low cost. ♦ Storage temperature: -200C to +850C. Specifications @250C Parameter Condition Turn Ratio(TX) (RX) Insertion loss @1-10MHz Attenuation(TX/RX) @30MHz @50MHz @100MHz Return loss(TX/RX) @5-10MHz Cross talk @1-10MHz CMRR @5-10MHz @50MHz Isolation Voltage Min. Typ Max. unit 1:1 1:1 -1.0 dB -32/-20 dB -35 dB -35 dB -15.0 dB -35.0 dB -50.0 dB -40.
