YGV630 - Advanced Video Display Processor 8

Key Features

  • s.
  • CPU Interface 16 bits or 32 bits Data Bus width selection Byte-write operation with WR3-0_N pin Supports data access in both big-endian and little.
  • endian formats Direct rendering to the entire video memory space from CPU Prepares interrupt pin Controllable Bus Wait and Bus Ready signals.
  • Clock Built-in PLL for system clock generation Built-in PLL for dot clock generation.
  • Analog Video Input 12-channel analog video inputs Supports Composite Video, S Video, Co.

📥 Download Datasheet

Datasheet Details

Part number YGV630
Manufacturer YAMAHA
File Size 1.02 MB
Description Advanced Video Display Processor 8
Datasheet download datasheet YGV630 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
YGV613 NVDP NAVIGATION SYSTEM VDP ETC
YGV617B ADVANCED VIDEO DISPLAY PROCESSOR ETC
YGV619 Advanced Video Display Processor LSI Computer Systems
YGV627 Advanced Video Display processor ETC
YGV628B AVDP7 Advanced Video Display Processor 7 YAMAHA CORPORATION

Other Datasheets by YAMAHA

Part Number Description
YGV606B ADVANCED VIDEO DISPLAY PROCESSOR
YGV618 Advanced Video Display Processor 5

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

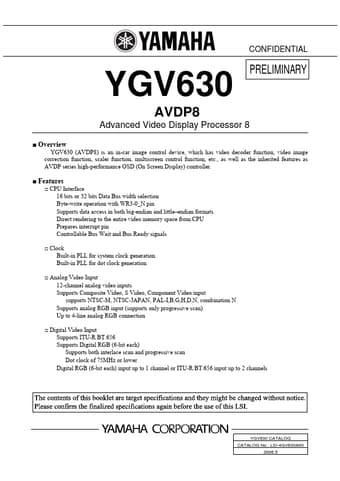

CONFIDENTIAL YGV630 PRELIMINARY AVDP8 Advanced Video Display Processor 8 ■ Overview YGV630 (AVDP8) is an in-car image control device, which has video decoder function, video image correction function, scaler function, multiscreen control function, etc., as well as the inherited features as AVDP series high-performance OSD (On Screen Display) controller.
