XP3P011YT P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP3P011YT Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low Gate Charge D ▼ Fast Switching Characteristic ▼ Simple Drive Requirem.
XP3P011 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

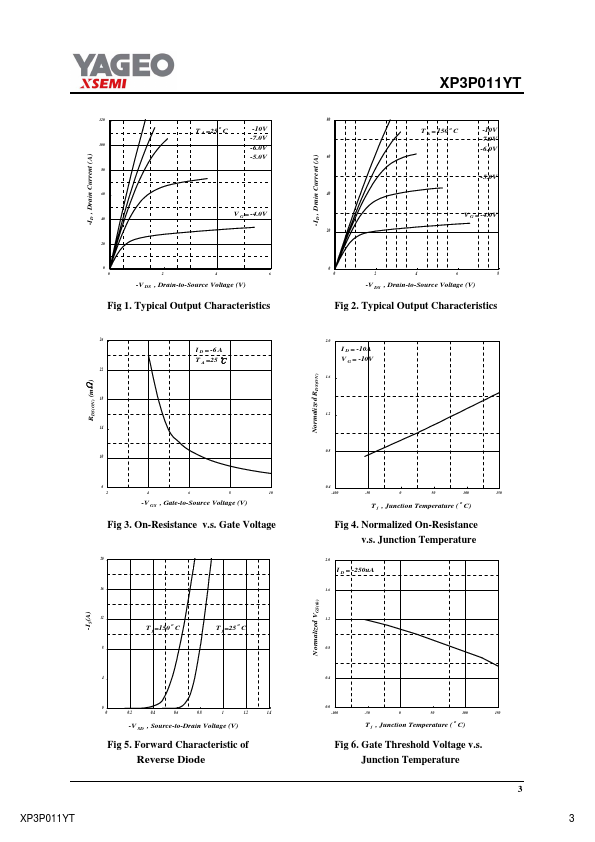

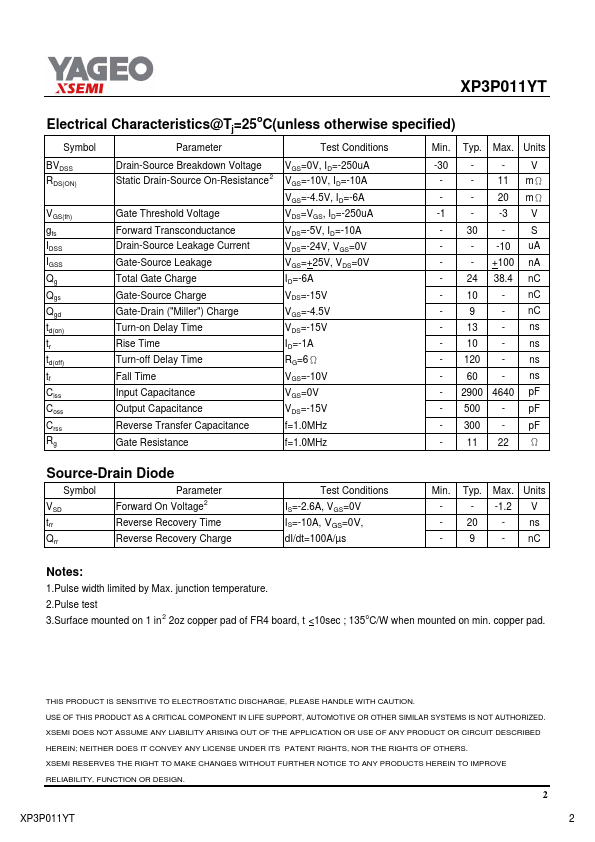

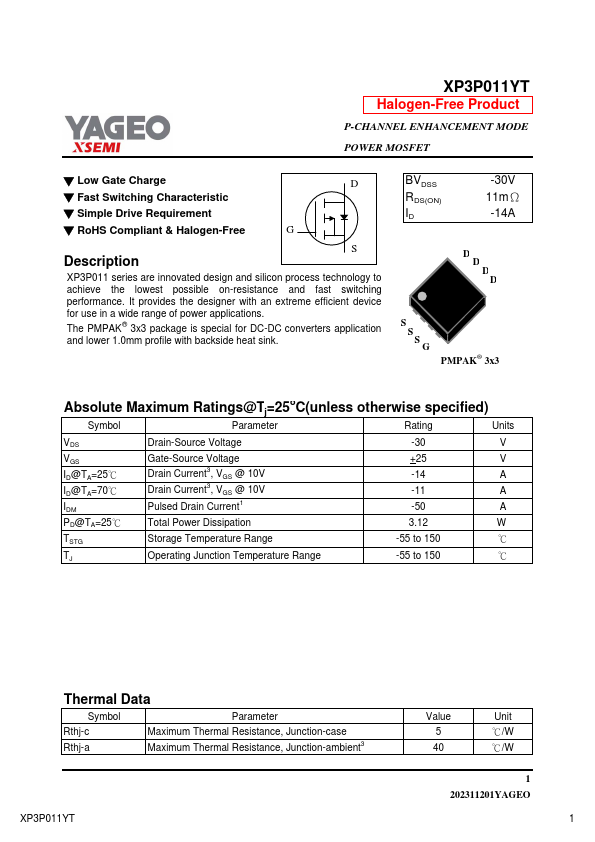

XP3P011YT Datasheet Preview — Preview of XP3P011YT PDF

Datasheet Specifications

Part number: XP3P011YT
Manufacturer: YAGEO
File Size: 241.95 KB
Datasheet: XP3P011YT-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK® 3x3 package is special for DC-DC converters application and lower 1.0mm profile with backside heat sink. BVDSS RDS(ON) ID -30V 11mΩ -14A D D D D S S S G PMPAK® 3x3 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@T
