Datasheet Details
- Part number
- XP3N1R8AMT
- Manufacturer
- YAGEO
- File Size
- 324.09 KB
- Datasheet
- XP3N1R8AMT-YAGEO.pdf
- Description
- N-CHANNEL ENHANCEMENT MODE POWER MOSFET
XP3N1R8AMT Description

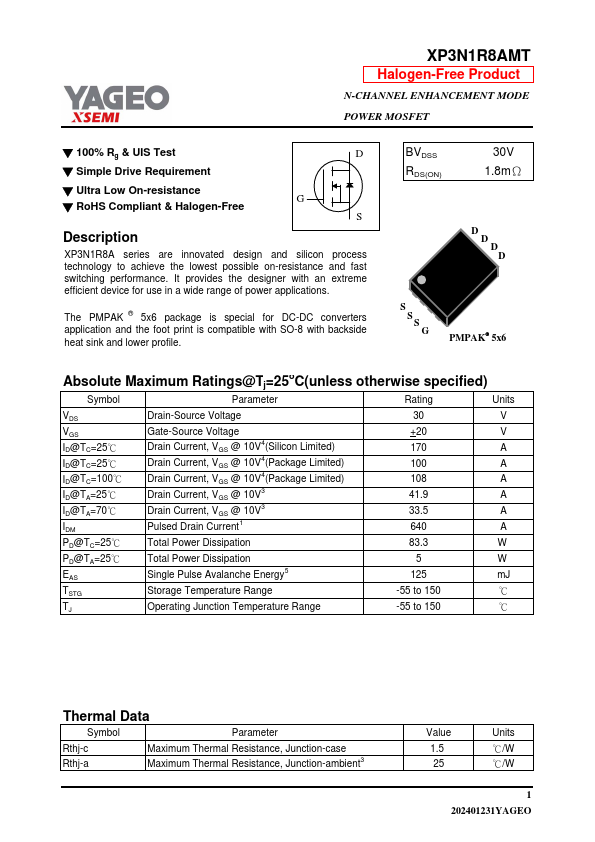

XP3N1R8AMT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Ultra Low On-resistanc.
XP3N1R8A series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.
XP3N1R8AMT Applications
* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON)
30V 1.8mΩ
D D D D
S S S G
PMPAK® 5x6
Absolute Maximum Ratings@Tj=25oC(unless otherwise specified)
Symbol
Parameter
Rating
