SH025M0010A2F-0511 - Aluminum Electrolytic Capacitors

Download the SH025M0010A2F-0511 datasheet PDF. This datasheet also covers the SH006M0100B2F-0511 variant, as both devices belong to the same aluminum electrolytic capacitors family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SH006M0100B2F-0511-YAGEO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SH025M0010A2F-0511
Manufacturer YAGEO
File Size 302.37 KB
Description Aluminum Electrolytic Capacitors
Datasheet download datasheet SH025M0010A2F-0511 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SH02C450 (SHxxCxxx) Rectifier Diodes Hind Rectifiers
SH02C500 (SHxxCxxx) Rectifier Diodes Hind Rectifiers
SH02C540 (SHxxCxxx) Rectifier Diodes Hind Rectifiers
SH02C675 (SHxxCxxx) Rectifier Diodes Hind Rectifiers
SH02C700 (SHxxCxxx) Rectifier Diodes Hind Rectifiers

Other Datasheets by YAGEO

Part Number Description
SH025M0010A5F-0511 Aluminum Electrolytic Capacitors
SH025M0010AZF-0511 Aluminum Electrolytic Capacitors
SH025M0010B2F-0511 Aluminum Electrolytic Capacitors
SH025M0022A2F-0511 Aluminum Electrolytic Capacitors
SH025M0022A5F-0511 Aluminum Electrolytic Capacitors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

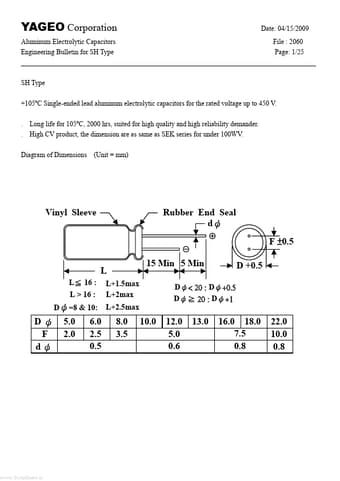

YAGEO Corporation Date: 04/15/2009 Aluminum Electrolytic Capacitors File : 2060 Engineering Bulletin for SH Type Page: 1/25 ______________________________________________________________________________________ SH Type +105ºC Single-ended lead aluminum electrolytic capacitors for the rated voltage up to 450 V. . Long life for 105ºC, 2000 hrs, suited for high quality and high reliability demander. . High CV product, the dimension are as same as SEK series for under 100WV. Diagram of Dimensions (Unit = mm) Vinyl Sleeve Rubber End Seal dψ F ±0.5 L 15 Min 5 Min D +0.5 L≦ 16 : L > 16 : Dψ=8 & 10: L+1.5max L+2max L+2.5max Dψ< 20 : Dψ+0.5 Dψ≧ 20 : Dψ+1 D ψ 5.0 6.0 8.0 10.0 12.0 13.0 16.0 18.0 F 2.0 2.5 3.5 5.0 7.5 d ψ 0.5 0.6 0.8 22.0 10.0 0.8 www.DataSheet.
