AF164 - ANTI-SULFURATED CHIP RESISTORS

YAGEO

📥 Download Datasheet

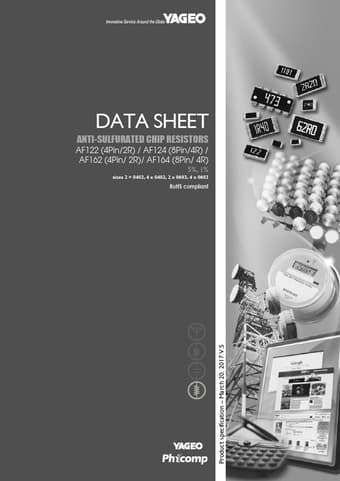

AF164 Datasheet Preview — Preview of AF164 PDF

Datasheet Details

Part number	AF164
Manufacturer	YAGEO
File Size	516.83 KB
Description	ANTI-SULFURATED CHIP RESISTORS
Datasheet	AF164-YAGEO.pdf

AF164 Product details

Description

POWER RATING AF122 / AF124 / AF164 rated power at 70 °C is 1/16 W RATED VOLTAGE The DC or AC (rms) continuous working voltage corresponding to the rated power is determined by the following formula: V= (P X R) or max.working voltage whichever is less Where V=Continuous rated DC or AC (rms) working voltage (V) P=Rated power (W) R=Resistance value (Ω) AF124 / 164 AF122 Fig.7 Maximum dissipation (P) in percentage of rated power as a function of the operating ambient temperature (Tamb) May 29, 2

Features

RoHS compliant.
Products with lead free terminations meet RoHS requirements.
Pb-glass contained in electrodes.
Resistor element and glass are exempted by RoHS.
Reducing environmentally hazardous wastes.
High component and equipment reliability.
Saving of PCB space.
None forbidden-materials used in products/production.
Halogen Free Epoxy.
Moisture sensitivity level: MSL 1 May 29, 2015 V.2.
