1.5KE110A-AT, 1.5KE6.8A-AT - TRANSIENT VOLTAGE SUPPRESSORS

YAGEO

Datasheet Details

Part number	1.5KE110A-AT, 1.5KE6.8A-AT
Manufacturer	YAGEO
File Size	391.21 KB
Description	TRANSIENT VOLTAGE SUPPRESSORS
Datasheet	1.5KE6.8A-AT-YAGEO.pdf
Note	This datasheet PDF includes multiple part numbers: 1.5KE110A-AT, 1.5KE6.8A-AT. Please refer to the document for exact specifications by model.

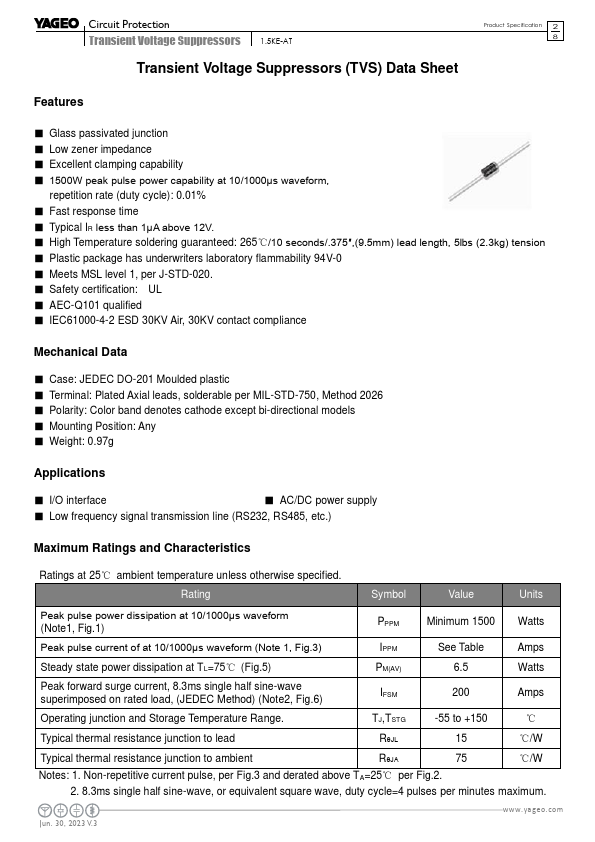

Glass passivated junction.
Low zener impedance.
Excellent clamping capability.
1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%.
Fast response time.
Typical IR less than 1μA above 12V.
High Temperature soldering guaranteed: 265℃/10 seconds/.375″,(9.5mm) lead length, 5lbs (2.3kg) tension.
Plastic package has underwriters laboratory flammability 94V-0.
Meets MSL level 1, per J-STD-020.
Safety certifica.
