XR6504 - SYNCHRONOUS BOOST CONVERTER

XR6504 Description

XR6504/B _____________________________ _______ __ SYNCHRONOUS BOOST CONVERTER With 7A Switch, Can Output 5V 3.4A with Li-Battery Input GENERAL D.
XR6504/B is a high efficiency synchronous boost regulator that converts down to 2.

XR6504 Features

* 2.5V Minimum input voltage
* Adjustable output voltage from 3V to 5. 5V
* 8A peak current limit
* Input under voltage lockout
* 600Khz fixed Switching Frequency
* Load disconnect during shutdown
* Integrated soft-start
* Output over voltage protection
* 20mohm P

XR6504 Applications

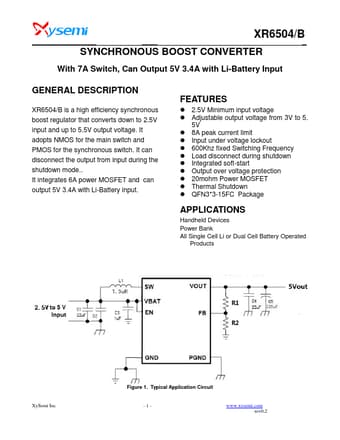

* Handheld Devices Power Bank All Single Cell Li or Dual Cell Battery Operated Products XySemi Inc Figure 1. Typical Application Circuit - 1
