XR3403D - 14V Step-up DC/DC Converter

Name: XR3403D
SKU: XR3403D-1350844

The XR3403D by XySemi is a 14V Step-up DC/DC Converter. Below is the official datasheet preview.

📥 Download Datasheet

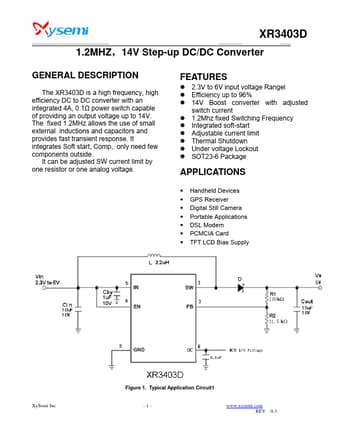

XR3403D 14V Step-up DC/DC Converter by XySemi - Datasheet Preview — Official preview page of the **XR3403D** 14V Step-up DC/DC Converter datasheet (XySemi).

Datasheet Details

Part number	XR3403D
Manufacturer	XySemi
File Size	244.65 KB
Description	14V Step-up DC/DC Converter
Datasheet	XR3403D-XySemi.pdf
Additional preview pages of the XR3403D datasheet.

XR3403D Product details

Description

The XR3403D is a high frequency, high efficiency DC to DC converter with an integrated 4A, 0.1Ω power switch capable of providing an output voltage up to 14V.

Features

z 2.3V to 6V input voltage Rangel z Efficiency up to 96% z 14V Boost converter with adjusted switch current z 1.2Mhz fixed Switching Frequency z Integrated soft-start z Adjustable current limit z Thermal Shutdown z Under voltage Lockout z SOT23-6 Package.
